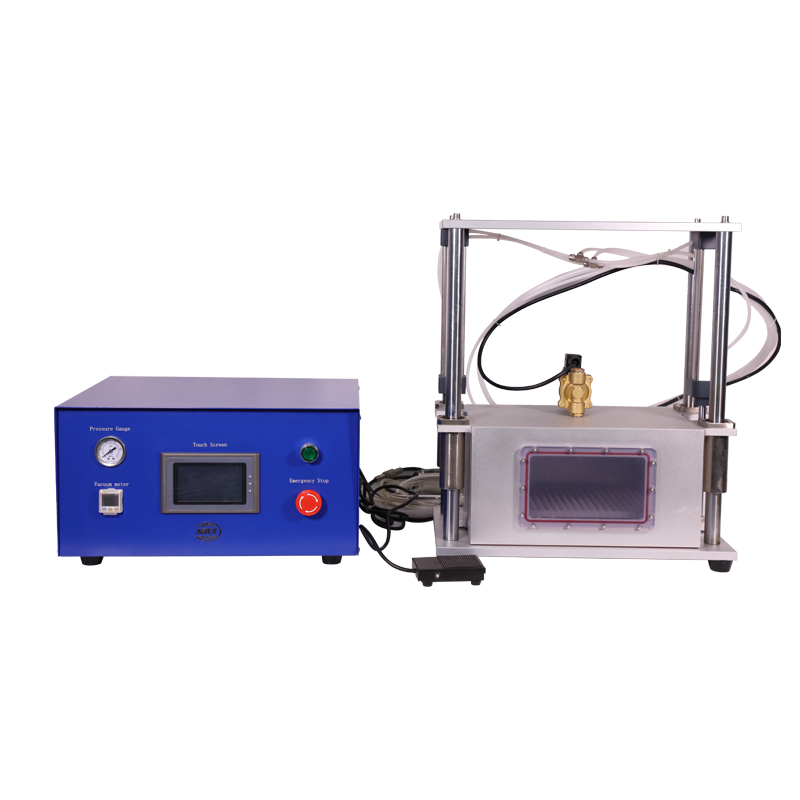

Cavity material: Aluminum alloy, corrosion-resistant and rigid structure
Standing time: 0–9999 s, adjustable; pressure adjustable
Vacuum level: up to above -95 kPa (vacuum pump to be prepared by buyer)
Sealing performance: air leakage within 1 minute not exceeding -1 kPa
Power supply: 220V / 50Hz; power: 100W
Compressed air source: 0.5–0.8 MPa; when used in a glove box, the cylinder power source must use working gas 0.5–0.8 MPa
Cavity volume: L320 × W320 × H175 mm
Operating cavity part: approx. L510 × W355 × H635 mm
Control unit: approx. L465 × W355 × H345 mm
Weight: approx. 60 kg
1. The vacuum remains stable. When holding, the vacuum is not much lower.
2. The product has a multi-stage cycle operation function. Helps the electrolyte to fuse more fully.
3. Through the perspective window, you can observe the changes in the cavity while working.
4. The upper cavity is driven by an air cylinder and guided by two linear guide sleeves, which can move up and down flexibly, and the guidance is accurate to ensure the product tightness requirements.
5. It can be applied to batteries of different specifications, and the adjustment is simple and convenient.
6. The main machine and the control box are separated design, so that the machine can work in the glove box or on the assembly line.
7. Easy operation, beautiful appearance, small size and light weight.
