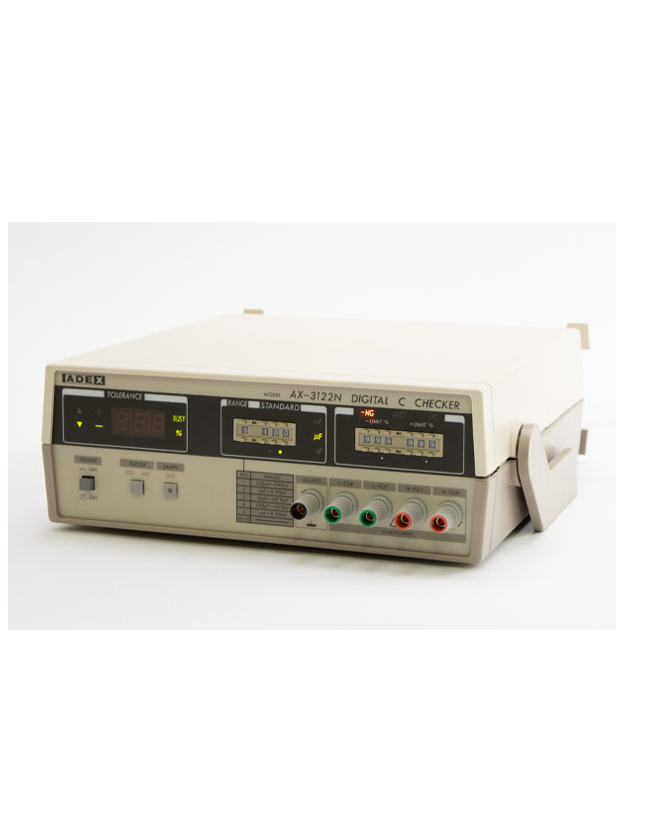

ADEX AX-3122N Digital Capacitance Checker (100nF ~ 9.99mF)

Measuring range and Accuracy (at23*C±5*C) *D＜1 series equivalent circuit

Range/ Measuring range/ Measuring voltage/ Accuracy

1/ 100nF～ 999nF/ less than 100mV/ within ±0.25％± (1＋10D) digit

2/ 1μF～ 9.99μF/ less than 100mV/ within ±0.25％± (1＋10D) digit

3/ 10μF～ 99.9μF/ less than 100mV/ within ±0.25％± (1 ＋10D) digit

4/ 100μF～ 999μF/ less than 100mV/ within ±0.3％± (2 ＋10D) digit

5/ 1mF～ 9.99mF/ less than 100mV/ within ±0.5％± (3 ＋10D) digit, ±CS (mF) /1mF digit

Measuring method: 5-terminal configuration with guard terminal

Measuring frequency: 120Hz ±0.1%, SINE wave

Measuring time:

[Remote start mode] 10msec.

[Free running mode] 50 times per second

Display of measured value (deviation): －79.9％～＋99.9％

Comparator set range: upper limit：＋0.0％～＋99.9％, lower limit：－0.0％～－79.9％

Indication of comparator's comparison result: LED indication -NG, GO, +NG and buzzer

Control signal: remote start input:

comparison output [LO/GO/HI]：open collector：max.50V, 100mA

end of comparison output [EOC]：open collector：max.50V, 100mA

BCD parallel output of measured value：fan out 2

Power supply: AC100V～240V selectable, 50/60Hz, about 20VA

Outer dimension: about 260 (W) ×90 (H) ×250 (D) mm (excluding protruding parts such as rubber legs, etc.)

Weight: about 2.6kg
