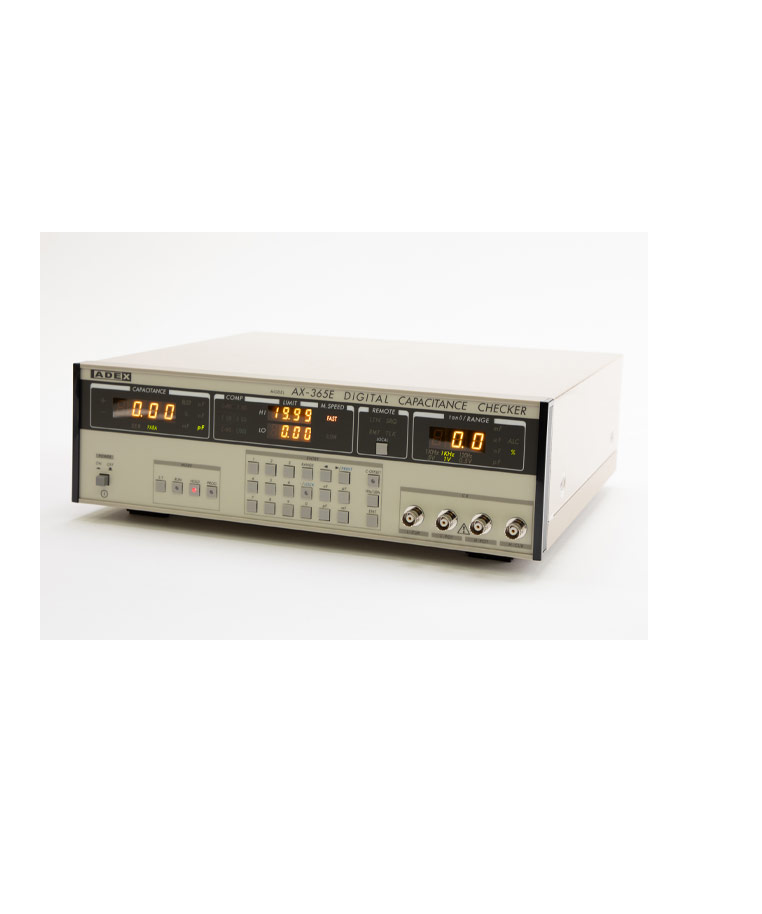

ADEX AX-365E Digital Capacitance Checker (0.000pF ~ 1.200mF)

Test current: 2 pF ~ 1.2 mF

Measuring range: 0.000pF ~ 1.200mF

Measuring method: 5-terminal measurement (Available to select the measuring method on each range), Parallel equivalent circuit/Series equivalent circuit conversion display

Measuring frequency: 120Hz/1kHz±0.1％,SINE wave

Test signal output impedance: about 1.5Ω

Capacity correcting range: about 20pF

Full scale and zero temp.coefficiecy: within ±100ppm/30℃

Measuring time: [Free running] FAST：about 1～5 times/sec. SLOW: FAST×N (N：Setting number of average value)

[The time from remote satart to INDEX signal] FAST:1.2m sec (typical value)

Comparator: Capacitance：1999 both for HI and LO [120μF, 1.2mF range: 1199 both HI and LO]

Set range"Tan δ：99.9％

Operation condition: [Temp.] 5℃～＋40℃ [Humidity] less than 85％

Power supply: AC85V～265V, 50/60Hz, about 50VA

Outer dimension: about 333(W)×99(H)×300(D)mm [excluding protruding parts such as rubber legs, etc.]

Weight: about 4.0Kg
