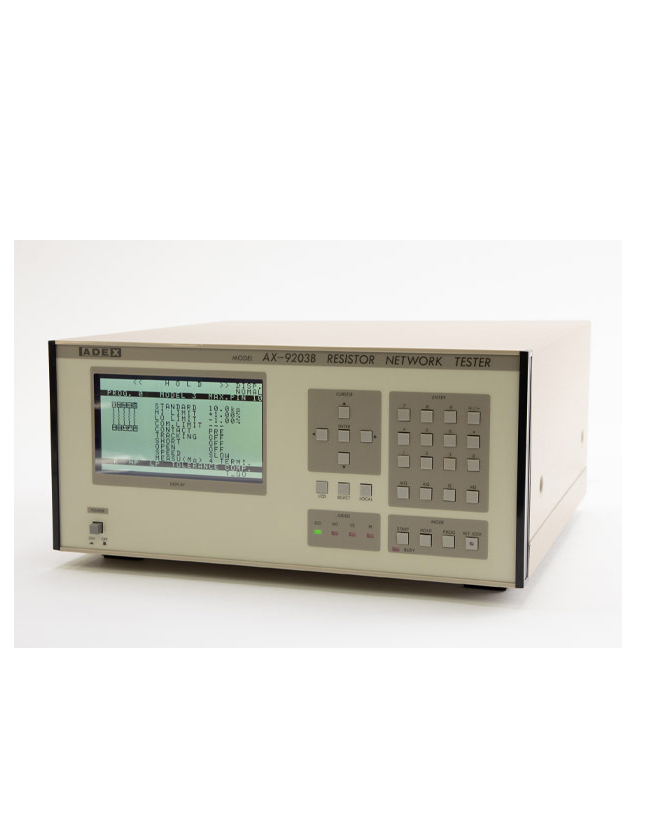

ADEX AX-9203B Network Resistance Checker (0.01Ω ~ 10MΩ)

Measuring range/ Measuring current

0.01Ω～1Ω/ 100mA

1Ω～10Ω/ 50mA

10.1Ω～ 100Ω/ 5mA

101Ω～1kΩ/ 5mA

1.01kΩ～10kΩ/ 500μA

10.1kΩ～100kΩ/ 50μA

101kΩ～ 1MΩ/ 5μA

1.01MΩ～ 10MΩ/ 0.5μA

mΩ CHECK (0～999mΩ)/ 50mA

Resolution Accuracy [SLOW]: read on the catalog

Measuring method: Less than 99.9kΩ/4 terminals, More than 100kΩ/2 or 4 terminals

Setting range of judging value for resistance measurement: ±9.99％ Measuring [±9.99% for both upper and lower limit]/ ±99.9％ Measuring [±99.9% for both upper and lower limit]

Setting range of tracking judging value: 0.01％～9.99％ (Judging function:Available ON/OFF)

Resistance element number to be able to measure: Common type: 9 elements/Independent type: 5 elements (Available 19 elements and up to 10 elements by option)

Measuring time: Common type (8 elements: less than 10kΩ) FAST-1: about 8msec (Including Time of Contact Check)

Independent type (4 elemtns: less than 10kΩ) FAST-1: about 5msec (Including Time of Contact Check and Short Check)

Check function

Contact-Check: Check is made if the measuring terminal is good condition for measurement (In case of 4 terminal measurement).

Short-Check: Check is made the insulation between adjoining pins.

Open-Check: Check is made Open between the designated pins after the measurement.

Operation condition: [Temp.] +5*C～+40*C [Humidity] less than 85％

Power supply: AC100V～240V selectable, 50/60Hz, about 30VA

Outer dimension: about 333 (W) ×149 (H) ×323 (D) mm (excluding cable-spool and legs.)

Weight: about 6kg
