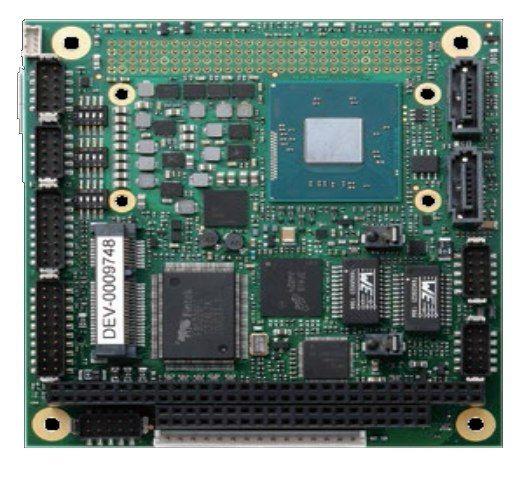

ADLINK Technology CM2-BT2-E3825 Single Board Computers CORE MODULE INTEL ATOM E3825 BAY TRAIL
Manufacturer: ADLINK Technology Model: CM2-BT2-E3825 - Contact
Core: Atom E3825
Frequency: 1.33 GHz
Dimensions: 96 mm x 90 mm
Form Factor: PC/104
Memory Type: DDR3L-1333
Unit Weight: 249.480 g
Cache Memory: 24 kB, 32 kB
Installed RAM: 0 GB
Interface Type: Audio, COM, GPIO, LVDS, Micro SD, mPCIe, SATA, USB 2.0, VGA
Processor Type: Atom E3825
Processor Brand: Intel
Processor Series: E3825
Description/Function: PC/104-Plus, Atom E3825, 1.33 GHz, dual core, includes heat spreader, standard operating temperature
Maximum RAM Capacity: 4 GB
Battery Backup Switching: No Backup Battery
Operating Supply Voltage: 5 V
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: 0 C
