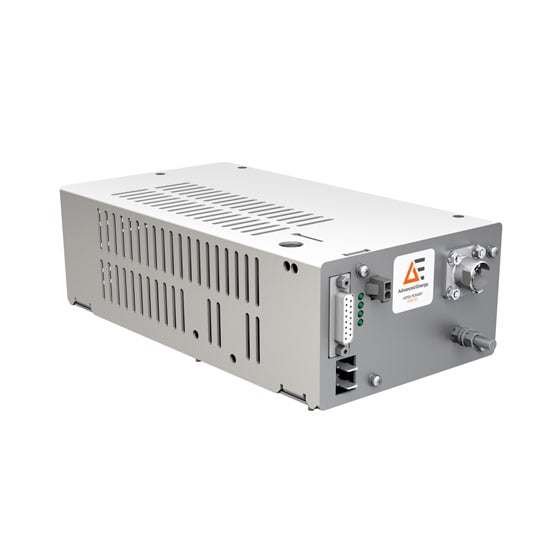

Advanced Energy XRG70-603 X-Ray Power Supply Module (60 kV; 1.2 mA; 72 W)

ELECTRICAL SPECIFICATIONS

Output Voltage :  60 kV

Output Current :  1.2 mA

Output Power:  72 W

Input Voltage: 24 VDC ±10%, 5.5 A max (efficiency ≈ 75%)

Ripple: 0.05% +10 V peak to peak max

Filament: 5.5 VDC, 3.5 A, controlled by internal beam control loop

Filament Disabled

+ Filament disabled: apply V > 2.8 V on pin 12

+ Filament enabled: apply V < 0.8 V on pin 12

+ Input Impedance: 10 kΩ max input voltage 24 V

MECHANICAL SPECIFICATIONS

Dimensions See drawings (in Datasheet)

Weight : Analog models: 3 kg (6.6 lb); Models with RS-232: 3.2 kg (7 lb)

Casing: Aluminum, clear, non-chrome passivate finish

Input DC Power Connector: Twin 63.5 mm (¼") push on spade terminals

HV Output Connector: HiTek Power-designed detachable connector

Filament Output Connector: Molex 2 W minifit 39-29-1028
