Dimensions (L x W x H): 195 x 230 x 150 mm (7.68 x 9.06 x 5.91 in)
Weight: 3.3 Kg
Disk Drive Bay: 2.5"
Fan: 1 fan (12cm / 82CFM)
Air Filters: Yes

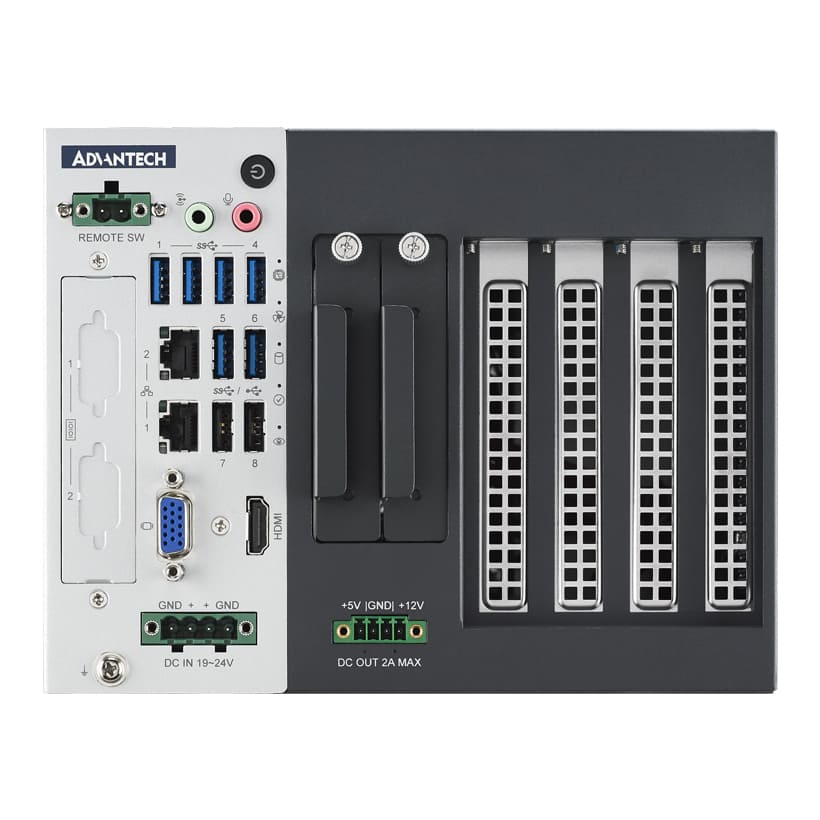

USB Ports: 8
LAN Ports: 2
Video Output: HDMI, VGA
Audio: Mic-in, Line-out
Serial Port: 2 x RS-232/422/485 (support auto flow control)
Remote SW: Used to control power on/off signal
DC Outlet: 12V@2A max; 5V@2A max
I/O Module: Supports Advantech iDoor
Add-On Card Module: 1 PCIe x16 / 1 PCIe x4 / 2 PCI
Control: Power switch
Indicator LEDs:
Power
Disk
CPU Temperature Alarm
System Temperature Alarm
CPU Fan Alarm
Watch Dog
Operating Temperature: 0 ~ 45 °C
Storage Temperature: -40 ~ 85 °C
Humidity: 95% @ 40 °C (non-condensing)
Vibration (5~500 Hz):
SSD: 2 Grms, random, 1 hr/axis
HDD: 0.5 Grms, random, 1 hr/axis
Shock: 10G, IEC-68-2-27, half-sine wave, 11 ms duration
