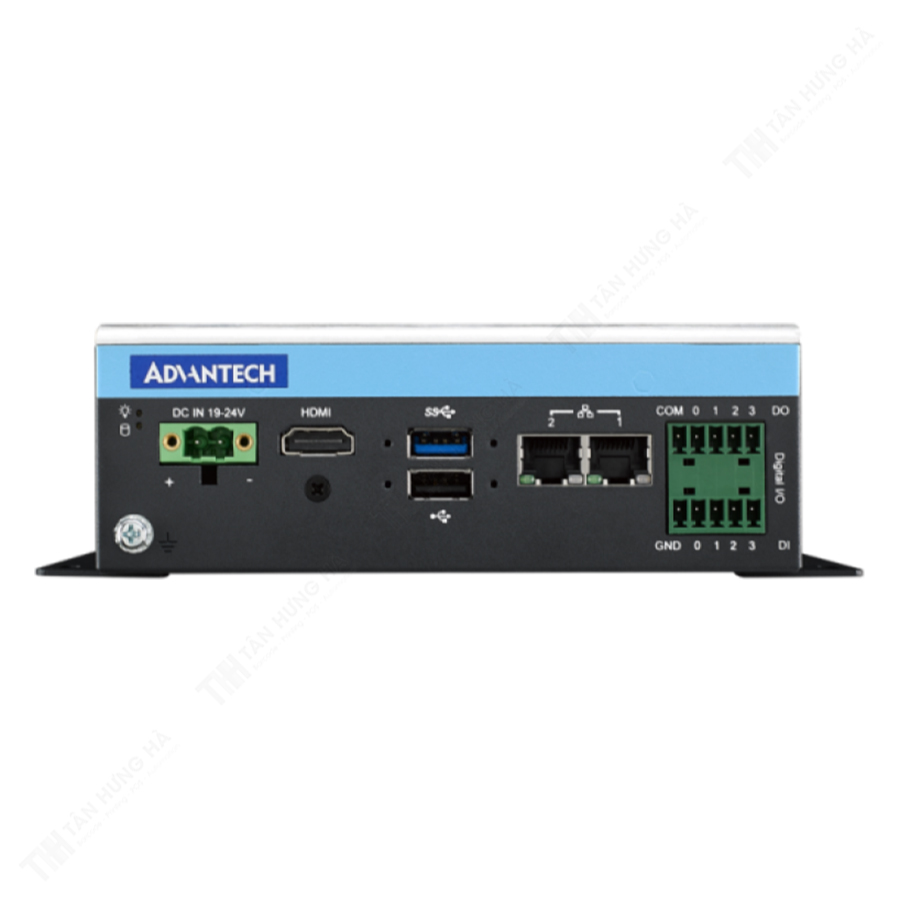

Advantech MIC-710AIX-00A1 AI Inference System Based on NVIDIA Jetson Xavier NX

Processor: 6-core ARM v8.2 64-bit (Carmel)

Memory: 8GB LPDDR4, SD card

Flash: 16GB of eMMC

Graphics Processor: 384 NVIDIA CUDA Cores, 48 Tensor Cores

Interface: RJ-45

Display: HDMI (Maximum resolution 3840x2160 @ 60Hz)

COM: 1 x RS232

USB: 2 x USB 2.0 and 1 x USB 3.0

Digital I/O: 8 bit

Power Supply: DC input 19-24V

Operating System: Linux Ubuntu 16.04 with BSP (Board Support Package)

Operating Temperature: -10 ~ 60°C

Storage Temperature: -40 ~ 85°C

Humidity: 95% @ 40°C (non-condensing)

Dimensions (W x H x D): 147 x 118 x 52 mm

Weight: 1.2 kg

Certification: CE/FCC/BSMI
