CPU: Intel® Celeron® N6210 dual core
Frequency: 1.2 GHz, Burst to 2.6GHz
L2 Cache: 1.5 MB
Memory: 1 x SO-DIMM DDR4 3200MHz (max. 32GB)
Storage: 1 x M.2 slot: M key for storage (SATA only, 2242)
Network (LAN): 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226-LM)
I/O: 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS); 1 x USB 2.0, 2 x USB 3.0
Expansion: 1 x M.2 slot : E key for wireless module (Type: 2230)
Watchdog Timer: 255 timer levels, set up by software
Dimensions: 197.6 x 150.6 x 41 mm (7.8 x 5.9 x 1.6 in)
Weight: 1.5 kg (3.30 lb)
OS Support: Microsoft® Win 10 IOT LTSC(64-bit), Win11, Linux (Ubuntu), Android 12
Input Voltage: 12 ~ 24 VDC
Power Consumption: 30W (Burn-in test 8.1 in Windows 10, 64-bit)

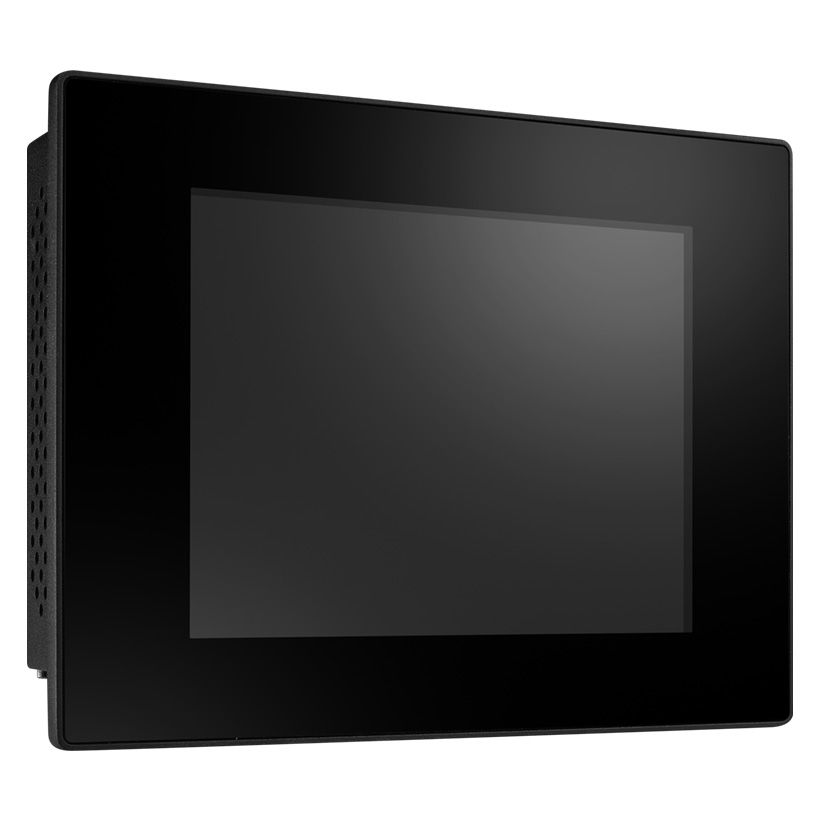

Display Type: 6.5" TFT LCD (LED backlight)
Resolution: 640 x 480
Viewing Angle: 89(left), 89(right), 89(up), 89(down)
Luminance (cd/m2 ): 800
Contrast Ratio: 1000
Backlight Lifetime: 70,000 hr (typical)
Touch Type: 5-wire resistive touch
Controller: USB interface
Operating Temperature: -10 ~ 50 °C (14 ~ 122 °F)
Storage Temperature: -30 ~ 60 °C (-22 ~ 140 °F)
Relative Humidity: 95% @ 40 °C (non-condensing)
Shock: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration: Operating Random Vibration Test; 2Grms @with M.2, follow IEC 60068-2-64
EMC: CE, FCC Class B, BSMI, UKCA, VCCI
Front Panel Protection: IP65 compliant
