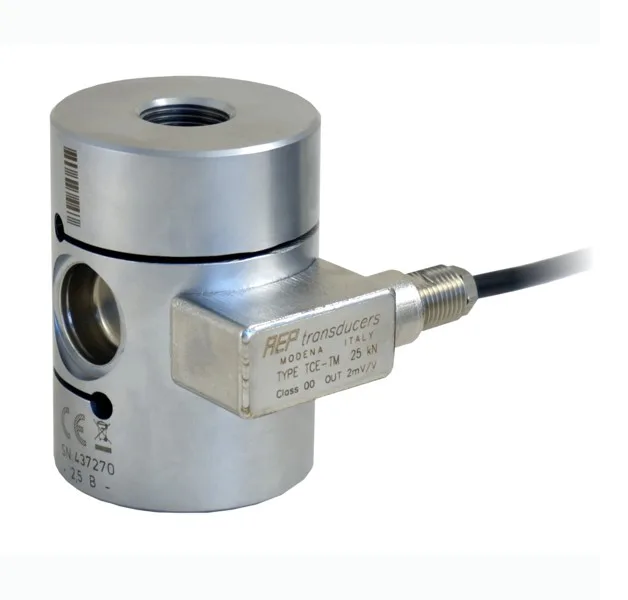

AEP Transducers TCETM Force Transducer (ISO 376; Class 1; IP67; 100 kN)

Accuracy Class: ISO 376 : 1

Nominal Load : 100 kN

Relative Errors (At Reading):

a) repeatability 0°-120°-240° (b): ≤±0.150%

b) interpolation (fc): ≤±0.055%

c) reversitivity (u): ≤±0.250%

d) zero (fo): ≤±0.020% F.S.

Linearity: ≤ ±0.03% F.S.

Hysteresis: ≤ ±0.03% F.S.

Temperature Effect (10°C):

a) on zero: ≤ ±0.030% F.S.

b) on sensitivity: ≤ ±0.011% F.S.

Nominal Sensitivity: 2 mV/V

Sensivity Tolerance: ≤ ±0.1% F.S.

Input Resistance: 440 ± 20Ω

Output Resistance: 352 ± 2Ω

Insulation Resistance: > 5 GΩ

Zero Balance: ≤ ± 1% F.S.

Recomended Supply Voltage: 10 V

Nominal Supply Voltage: 1-15 V

Maximum Supply Voltage: 18 V

Mechanical Limit Values Referred To Nominal Load::

a) service load: 120%

b) max permissible load: 150%

c) breaking load:  > 300%

d) max transverse load: 50%

e) max permissible dynamic load: 50%

Displacement At Nominal Load: ∼ 0.3 mm

Reference Temperature: +23 °C

Temperature Nominal Range: -10 / +40 °C

Service Temperature: -10 / +70 °C

Storage Temperature: -20 / +80 °C

Weight: 1.45 - 4.45 kg

Protection Class (En 60529): IP67

Execution Material: Stainless Steel

Cable Length: 5 m
