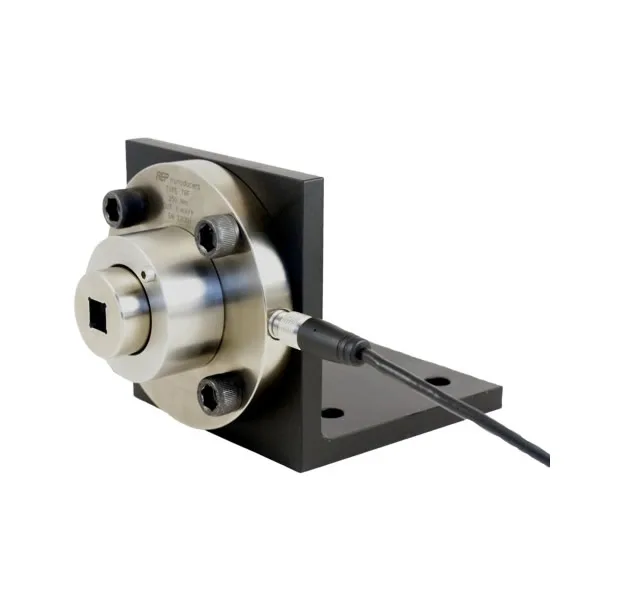

Torque : 1000N·m
Linearity And Hysteresis : ≤±0.20 %
Temperature Effect (1°C)::
a) on zero: ≤± 0.02%
b) on sensitivity: ≤± 0.02%
Nominal Sensitivity: 1mV/V
Sensivity Tolerance: ≤± 0.5%
Input Resistance: 825 ± 50Ω
Output Resistance: 700 ± 2Ω
Nominal Power Supply: 1-15V
Max. Power Supply: 18V
Insulation Resistance: >2 GΩ
Zero Balance: ≤± 1%
Limit Mechanical Values Referred To Nominal Torque::
a) service torque: 100%
b) max. permissible torque: 150%
c) breaking torque: >300%
d) highly dynamic torque: 70%
Reference Temperature: +23°C
Working Temperature Range: -10/+70°C
Storage Temperature Range: -20/+80°C
Protection Class (En 60529): IP40
Sensor Execution Material: INOX
Electrical Connection: M12 5 Poli Maschio
Process Coupling (Uni Iso 1174-1): 3/4”
