AC withstand Voltage (ACW): 5kVac/100mA (optional 200mA)
DC withstand Voltage (DCW): 6kVdc/20mA
Insulation Resistance (IR): 6kVdc/100GΩ
AC Ground Bond Resistance (GB): None
DC Ground Bond Resistance (DCGB): (Optional 40A, 60A)
Multiple Cards: Optional multi-channel ACW/DCW scanning card, multi-channel GB scanning card, and DC low resistance card; (When more than one card is inserted, additional 1U chassis height shall be added for each additional card, and 2U height for 100A DCGB card
Parallel: (Optional: Voltage division ratio, parallel ACW/DCW test between input-output-case; parallel GB and ACW/DCW test)
Operation Interface: Android system, 7" touch screen, RS232LANWIFIPLCUSB interface
Informatization: Local store, data filter and export; barcode recognition and automatic program matching, MES system integration; optional: HDMI interface, supporting external LCD display, keyboard/mouse
Dimensions (W*H*D mm): 426*132*520

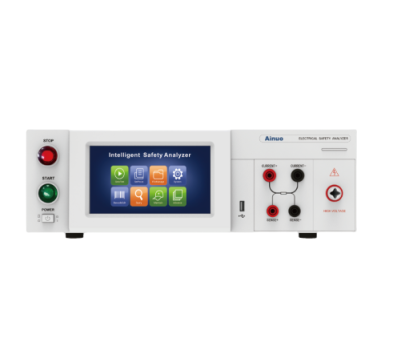

Images for illustrative purposes only
