Constant Current(CC):
Range: 0-6A, 0-60A
Resolution of setting: 0.1mA, 1mA
Accuracy: 0.03%+ 0.05% * F .S.
Constant Voltage(CV):
Range: 0.1-20V, 0.1-150V
Resolution of setting: 1mV, 10mV
Accuracy: 0.03%+ 0.02% * F .S.
Constant Resistance (CR) (when input voltage and current≥10% of full range)
Range: 0.03Ω-99.999Ω / 100Ω-999.99Ω / 1000Ω-9999.9Ω
Resolution of setting: 0.001Ω/ 0.01Ω/0.1Ω
Accuracy: Vin/Rset*(0.2%)+0.2%IF.S.
Constant Power(CP) (when input voltage and current≥10% of full range):
Range: 100W/300W
Resolution of setting: 1mW/10mW
Accuracy: 0.1%+0.1%F.S.
Voltage measurement
Range: 0-20V, 0-150V
Resolution of setting: 1mV, 10mV
Accuracy: 0.015%+ 0.05% * F .S.
Current measurement
Range: 0-6A, 0-60A
Resolution of setting: 0.01mA, 0.1mA
Accuracy: 0.03%+0.05%F.S., 0.03%+0.08%F.S.
Power measurement (when input voltageand current≥10% of full range)
Range: 100W/300W
Resolution of setting: 1mW/10mW
Accuracy: 0.1%+0.1%F.S
Battery test: Input voltage: Max. set voltage; current resolution: current resolution of the stage; time: 0-99.999H
Dynamic test: Test frequency: 0-25KHz; current change rate: 2.5A / us,time: 20us-999999ms, resolution: 20µs
Current soft start time: 0-999999ms, accuracy: 20µs
Short circuit function: >= 1.1 times the range of the stage
Dimensions WxHxD (mm): 213 * 88 * 401
Weight: 6.7kg

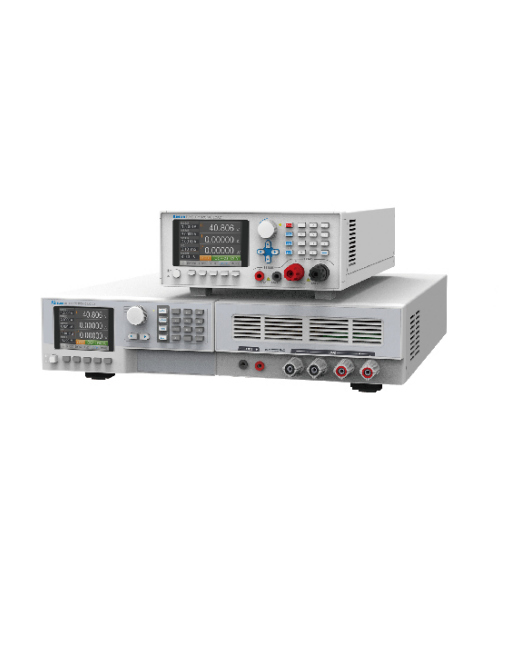

*Images are for illustrative purposes only.
