Input: Single phase, 220V ± 22V, 47–63Hz
Output:
• Voltage: 0~300V
• Current: 0~5A
• Power: 0~1500W
Resolution / Accuracy
• Voltage: Resolution 0.1V / 0.01V, Accuracy ≤0.2%Umax
• Current: Resolution 0.001A, Accuracy ≤0.35%Imax
Ripple and Noise (20Hz~20MHz)
• Vrms: 100mV
• Vpp: 500mV
Effect
• Voltage: Load effect ≤0.1%Umax, Source effect ≤0.05%Umax
• Current: Load effect ≤0.2%Imax, Source effect ≤0.1%Imax
Transient response time: ≤5ms (50%~100%, or 100%~50%, error returns to 0.75% of stable value)
Rise time 100%: On-line voltage adjustment: 50ms (10%~90%); Start slow rise time: 1s
Communication: RS-232 (Standard) / 485 (Optional) / Analog interface (Optional)
Protection: Output short-circuit protection, output overvoltage, overheat, S-terminal over-compensation protection, S-terminal reversal protection
List test function (Optional)
Capable of storing 50 sequences, each sequence contains 20 steps.
Each step of the function can be set independently, a total of 13 independent functions.
Environment
Temperature: 0~40°C
Humidity: 20~90%RH
Dimensions (W×H×D mm): 440×133×350
Weight: 9kg

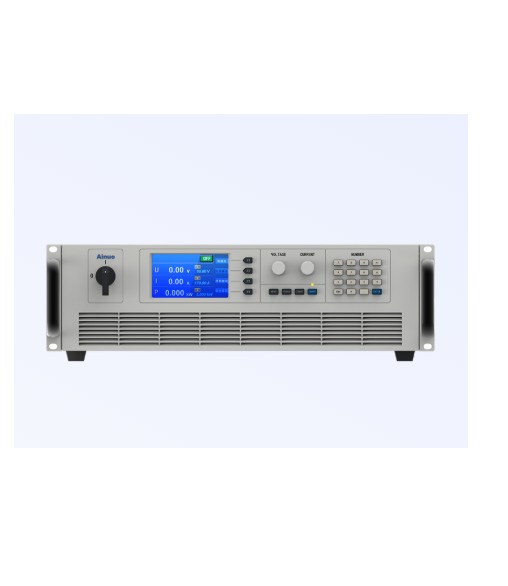

*Images for illustration purposes only
