Input:
Voltage: 3-phase + PE, 340V ~ 420VAC
Frequency: 47 ~ 63 Hz
Output:
Voltage: 0～80V
Current: 0～340A
Power: 10kW
Display Mode: 4.3” Color LCD Screen
Measurement Accuracy:
Voltage: ≤0.05% Umax, Resolution: 0.01V
Current: ≤0.1% Imax, Resolution: 0.01A (>1000A, 0.1A)
Power: ≤1% Pmax, Resolution: 0.001kW (>100kW, 0.01kW)
Ripple & Noise (20Hz ~ 20MHz):
Vrms: 40mV
Vpp: 250mV
Load Effect: Voltage: ≤0.01% Umax; Current: ≤0.05% Imax
Power Effect: Voltage: ≤0.01% Umax; Current: ≤0.01% Imax
Transient Response Time: ≤2ms
Maximum lead drop compensation: 6.5V
Communication control interface: Standard: RS232, RS485, CAN, and LAN, optional: GPIB, analog port, and USB
Protection functions: Input undervoltage protection, short-circuit protection, reverse connection protection, output overvoltage and current-limiting protection, overheating protection, and S-terminal compensation function
Parallel connection function: It supports multiple units for parallel output to expand power/current range.
Working environment: Temperature 0-40℃; Humidity 20-90%RH
Dimensions (W × H × D): 440 × 133 × 600 mm
Weight: 27kg

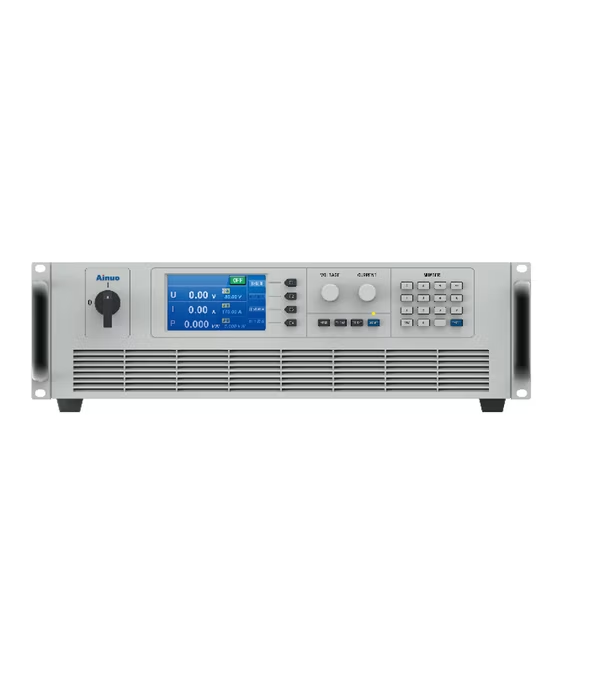

*Images for illustration purposes only
