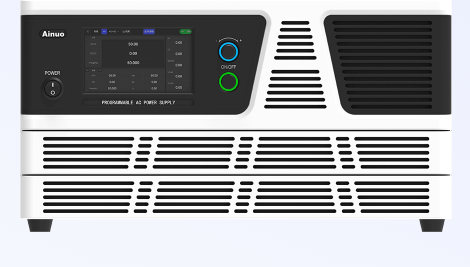

Power supply capacity: 6000VA.
AC Input:
Voltage: Line voltage: 342V-480V; 3-phase 3-wire + PE
Current@342V: 25A Max
Frequency: 47~63Hz.
Power factor: ≥0.98.
AC Output
Phase number: Single-phase.
Power: 6000VA.
Voltage
Range: 0.00-350.00V
Resolution: 0.01V; Accuracy: 0.1%F.S.
Distortion: 0.3%@50/60Hz;1%@30-100HZ
Source voltage effect: ≤0.02%.
Load effect: ≤0.02%.
Curent/phase
Effective current range: 35A
Peak current range: 105A
Frequency range/resolution/accuracy : 30.000~100.000HZ, 0.001Hz, 0.01%.
Power: 6000W
DC Output
Voltage range: -495.00~495.00V
Current range: 35A
Function:
Display: 5-inch color touch screen LCD
Harmonic and interharmonic simulation bandwidth: 3000Hz.
Sequence mode: 200 steps with 9,999 loops. Voltage, frequency, and phase angle can be programmatically outputted
Pulse mode: 9,999 loops. Cyclic changes in voltage amplitude, frequency, and angle/
Step mode: 9,999 loops. Change the voltage frequency according to the set voltage and frequency step values
Online regulation function: Under the conventional mode, the output voltage and frequency can be adjusted online, and the wavefom can be switched online
Line drop compensation: The device has Sense teminals that alow remote sampling compensation
Communication interface: RS485 (standard), Ethernet (standard), synchronization signal (standard), RS232 (optional), GPlB (optional)
Remote control: None
Temperature/Humidity: 0~40°C / 30~90%RH.
Efficiency: ≥92%
Protection: input abnormalty, bus overvoltage, output overvoltage and undervollage, output overcurent, output overoad, and module overheating
Dimensions (W×H×D): 432×175×700 mm.
Weight: ≤25kg.
