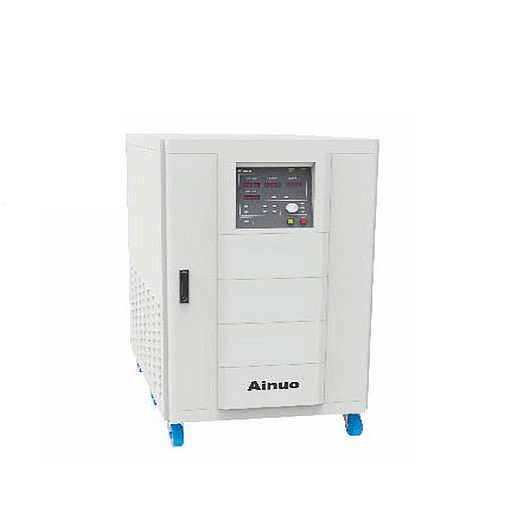

Ainuo ANFC030 T(F) AC Power Supply ANFC Three-phase (30kVA, 45.4A)

Name: Ainuo ANFC030 T(F) AC Power Supply ANFC Three-phase (30kVA, 45.4A)
Brand: Ainuo

ManufacturerAinuo(View more products from this manufacturer)

ModelANFC030 T(F)

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Input: 3-phase 4-wires，AC： 380V±57V，50/60Hz±3Hz
Output Capacity: 30kVA
Frequency Stability: 45.0~65.0H, 100H, 120H, 200H, 240Hz
Frequency Stability: ≤0.02%
Output Voltage: 3-phase 4-wires，1.0~300.0V
Output Current: 45.4A
Line Regulation: ≤1%
Load Regulation: ≤1%
Modulating voltage range: ≤3V
Protection Mode: IGBT hot、IGBT OverCurrent、Transformer hot、Input Lack Voltage、Input Over Voltage、Output Lack Voltage、Output Over Voltage、Output Over Current、Output Over Power
Voltage Drop Compensation: 0.000~0.500Ω
Communication：RS232（Standard), RS485（Options), GPIB（Options), Ethernet（Options)
Remote Control：Analog Control（Options)
Dimension W×H×D(mm): 600*1130*1018
Weight（kg): 300

Product Detail

Main features
* Adopt FPGA digital technology,realize precision control and high quality sine wave output;
* Three-phase loading separately,start single phase output by U/V/W fast settings;
* Operating in over current shock(up to 3 time of rated current) within 2s,start the impact load of 1/3 capacity of power supply directly;
* Adjustable voltage and frequency during output status;
* Measurement:voltage,current,frequency,active power;
* Online monitoring:monitor IGBT temperature,transformer temperature,fan speed,input voltage and other parameters during output status;
* Operating data recorders;keep the record of power supply status and alarm code automatically during alarming;
* Voltage rangge:1.0-150.0v or 150.1-300.0v automatic adjustment,or locked at 1.0-300.0v;
* Shortcuts groups,power-off memory,shortcuts key and knobs operation;
* Fan speed will be adjustable automatically with the temoerature of power supply to reduce the noise,;
* Lock key,user-friendly design,automatically locking without operation for 5 minutes to prevent from operation mistakes,;
* Standard RS232,optional RS485,GPIB,Ethernet,analog control and other remote communication/control;

Order and Extensions
* ANFC three-phase AC power supply:1.0-300.0V/45.0-65HZ,100HZ,120HZ,200HZ,240HZ,optional 15KVA,30KVA,45KVA,60KVA,90KVA,120KVA,180KVA,240KVA,Larger capacity can be modified;
* Communication interfaces:Standard RS-232,optional RS485,GPIB,Ethernet,analog control and other remote communication/control.
Larger capacity can be modified;
* Communication interfaces:standard RS-232,optional RS485,GPIB,Ethernet(Remarks:only can select one of RS-232,RS-485,GPIB,Ethernet);
* Remote control interface:optional analog control interface;

* PC control software;

Spec.

Model/Specification		ANFC015 T(F)	ANFC030 T(F)	ANFC045T(F)	ANFC060T(F)	ANFC090T(F)	ANFC120 T(F)	ANFC180 T(F)
Input		3-phase 4-wires，AC： 380V±57V，50/60Hz±3Hz
Output Capacity		15kVA	30kVA	45kVA	60 kVA	90 kVA	120 kVA	180kVA
Output Frequency		45.0~65.0Hz、100Hz、120Hz、200Hz、240Hz
Frequency Stability		≤0.02%
Output Voltage		3-phase 4-wires，1.0~300.0V
Output Current	110V	45.4A	90.9A	136.3A	181.8A	272.7A	363.6A	545.4A
	220V	22.7A	45.4A	68.2A	90.9A	136.3A	181.8A	272.7A
Accuracy	Voltage	Resolution：0.1V Accuracy：0.2%×reading+0.2%×F.S. (45Hz—65Hz)
	Current	Resolution：0.1A(<1000A)/1A(≥1000A) Accuracy：0.3%×reading+0.3%×rated output
	Frequency	Resolution：0.1Hz Accuracy：0.05%
	Power	Resolution： 0.1kW / 0.01kW / 0.001kW Accuracy： 0.45%×reading+0.45%×F.S. (45Hz—65Hz)
Line Regulation		≤1%
Load Regulation		≤1%
Voltage Distortion		Linear load： THD＜1%
Transient time		20ms
Phase retardation		120°+2°
Phase unbalance factor		≤1%
Crest factor		1.41±0.1
Modulating voltage range		≤3V
Over Power		105%≤Output＜110% the output will be stopped within 15 Sec. 110%≤Output＜210% the output will be stopped within 5 Sec. 210%≤Output＜310% the output will be stopped within 2 Sec. 310%≤Output＜410% the output will be stopped within 1 Sec. 410%≤Output the output will be stopped immediately
Protection Mode		IGBT overheat、IGBT Over Current、Transformer overheat、Input Lack Voltage、Input Over Voltage、Output Lack Voltage、Output Over Voltage、Lack Output Phase Output Over Current、Output Over load、Output short Cirluit
Voltage Drop Compensation		0.000~0.500Ω
Softstart Time		0.0~99.9S
Efficiency		＞86%
Shortcut Group		7 groups
Online Voltage Adjustment		The output voltage and frequency(45-65Hz) can be adjusted online under running status.
Communication/ Remote Control		Communication：RS232（Standard)、RS485（Options)、GPIB（Options)、Ethernet（Options) <span style="font-size:9.0pt; font-family:"
