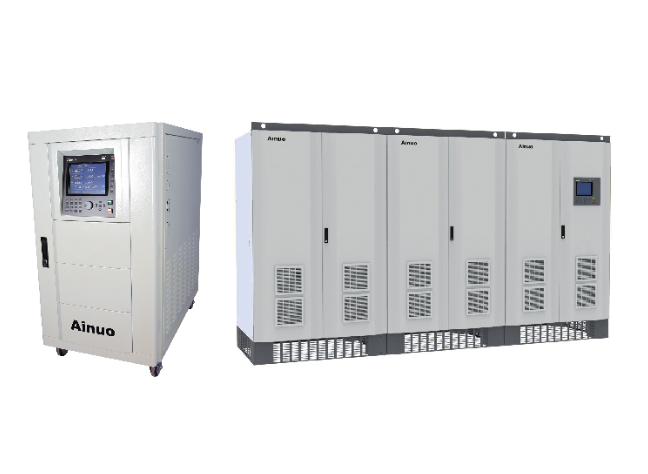

Ainuo ANFS650A(F) AC Power Supply (650 kVA; 984.8A)

Name: Ainuo ANFS650A(F) AC Power Supply (650 kVA; 984.8A)
Brand: Ainuo

ManufacturerAinuo(View more products from this manufacturer)

ModelANFS650A(F)

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Capacity: 650kVA

Input

• Phase: 3-phawe 4-wires + PE

• Voltage: Phase voltage: 220V±33V, line voltage: 380V±57V

• Frequency: 50/60Hz±3Hz

Output

• Phase: 3-phawe 4-wires

• Model: 3 phase standard mode, 3 phase independent mode, parallel single phase mode

• Voltage: Phase voltage: 0 ~ 300.0V

Automatic files: (low) 0 ~ 150.0V, (high-grade) 150.1 ~ 300.0V; high-grade lock: (high-grade) 0 ~ 300.0V

• Frequency: 45.0~240.00Hz

• Output current : 220V: 984.8A

• Setting accuracy

Voltage : Resolution: 0.1V, precision: 0.4%xreading value +0.4%xfull scale value

Frequency : Resolution: 0.01Hz, precision: 0.05%

• Measurement accuracy:

Voltage: Resolution: 0.1V, precision: 0.4%xreading value +0.4%xfull scale value

Frequency: Resolution: 0.01Hz, precision: 0.05%

Electric current: Resolution: 0.1A/1A, accuracy: 0.6%xdisplay value +0.6%xrated output value

Power: Resolution: 0.1 kW/0.01 kW/0.001 kW, precision: 0.75%xreading value +0.75%xfull scale value

Frequency stability: ≤0.02%

Voltage distortion: Linear load: THD < 1%

Transient recovery time: 20ms

3 phase phase difference: 3 phase standard mode: 120 degree + 2

Crest factor : 1.41±0.1

Power effect: ≤1%

Load effect: ≤1%

Over power:

105%<Output≤110% the output will be stopped within 15 Sec 110%<Output≤200% the output will be stopped within 5 Sec 200%<Output≤300% the output will be stopped within 2 Sec 300%<Output the output will be stopped immediately

Anti impact ability: Can withstand 3 times the rated current of 2S Protection mode: IGBT overheat, IGBT over current, Transformer overheat, Input lack voltage, Input over voltage, Output lack voltage, Output over voltage, Lack output phase, Output over load, Output short cirluit, Output over current

Efficiency: >86%

Function

• Display mode: 8 inch LCD display, resolution: 800*600

• Softstart time 0.0~99.9S

• Online adjustment function: The output voltage and frequency (45-65Hz) can be adjusted online under running status.

• Memory function: Under normal mode, the output voltage and output frequency can be adjusted online, which can be switched on line.

• Shortcut group: 10 groups

• Line voltage crop compensation: 0.000~0.500 Ω

• Communication: RS232(standard) RS485(options) GPIB(options) Ethemet(options)

• Remote control: Remote control: Analog Control(Options)

Operating Temperature: 0 ~ 40 °C

Operating Humidity: 20 ~ 90%RH
