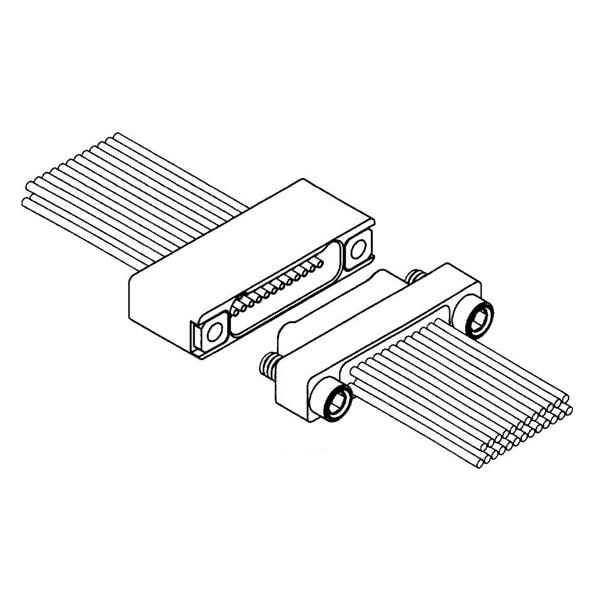

AirBorn M32139/03-D11SN I/O Connectors Cable Connector Plug 2 Row N Series
Manufacturer: AirBorn Model: M32139/03-D11SN - Contact
Pitch: 0.635 mm
MIL Type: MIL-DTL-32139
Unit Weight: 48 g
Contact Gender: Pin (Male)
Current Rating: 1 A
Mounting Angle: Straight
Mounting Style: Cable
Number of Rows: 2 Row
Voltage Rating: 33 V, 83 V
Contact Plating: Gold
Contact Material: Beryllium Copper
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Crimp
Number of Positions: 25 Position
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
