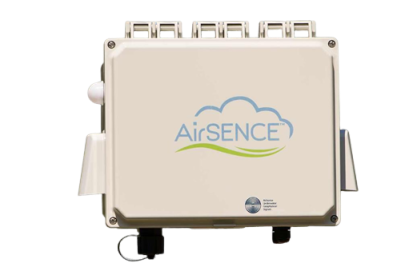

AirSENCE STANDARD Continuous Ambient Air Quality (NO, NO2, CO, O3, SO2, PM (PM10, PM2.5, PM1))

Configuration: NO, NO2, CO, O3, SO2, PM (PM10, PM2.5, PM1), Temperature, humidity, wind speed and wind direction

Particulate Matter <10 µm (PM10) 0–6,000 µg/m3

Particulate Matter <2.5 µm (PM2.5) 0–6,000 µg/m3

Particulate Matter <1 µm (PM1) 0–6,000 µg/m3

Nitric Oxide (NO): 0–6,000 ppb  Solar & UV Radiation

Nitrogen Dioxide (NO2): 0–10,000 ppb

Carbon Monoxide (CO): 0–8,000 ppb

Ozone (O3): 0–10,000 ppb

Sulfur Dioxide (SO2): 0–10,000 ppb

Physical

Dimensions: 322mm × 239mm × 177 mm (12.7" × 9.4" × 7.0")

Weight: 2.2 kg (4.8 lbs)

Operating Temperature Range: -35 – +55°C

Operating Pressure Range: 30 – 110 kPa (4.35 – 15.95 psi)

Humidity Range: 0 – 95% RH

Communication: Ethernet, Wi-Fi, Worldwide Cellular Coverage (2G – 5G), LoRaWAN, Modbus over RS485 or TCP/IP

Enclosure Details

Material: Polycarbonate

Rating: NEMA 4 / 4X IP65 sealing

Mounting Options: Pole mount or wall mount (kits available)

Electrical

Power Supply: 9 – 36 VDC; PoE support

Power Consumption: Typical 5 W, Max 8 W

For more details, please see brochure.
