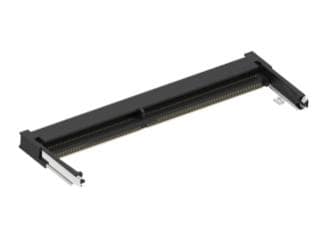

Alcoswitch - TE Connectivity 2309409-1 DDR4 DDR4 SODIMM 260P 5.2H STD
Manufacturer: Alcoswitch - TE Connectivity Model: 2309409-1 - Contact
Pitch: 0.5 mm
Height: 5.2 mm
Unit Weight: 4.300 g
Current Rating: 500 mA
Mounting Angle: Right Angle
Mounting Style: PCB Mount
Voltage Rating: 1.2 V
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Termination Style: SMD/SMT
Number of Positions: 260 Position
Insulation Resistance: 250 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 55 C
