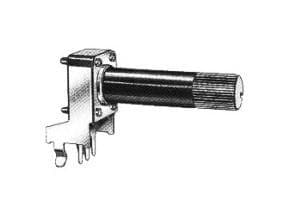

Alpha (Taiwan) RV09AF-40-20K-A100K Rotary Audio 9mm 100K
Manufacturer: Alpha (Taiwan) Model: RV09AF-40-20K-A100K - Contact
Life: 10000 Cycle
Taper: Log
Tolerance: 20 %
Resistance: 100 kOhms
Shaft Type: Knurled / Serrated
Orientation: Vertical
Switch Type: No Switch
Unit Weight: 1.828 g
Element Type: Metal
Power Rating: 50 mW (1/20 W)
Shaft Length: 20 mm
Mounting Style: PCB Mount
Shaft Diameter: 6 mm
Voltage Rating: 50 VAC
Number of Gangs: 1 Gang
Number of Turns: 1 Turn
Number of Detents: Without Detent
Termination Style: Snap In
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 10 C
