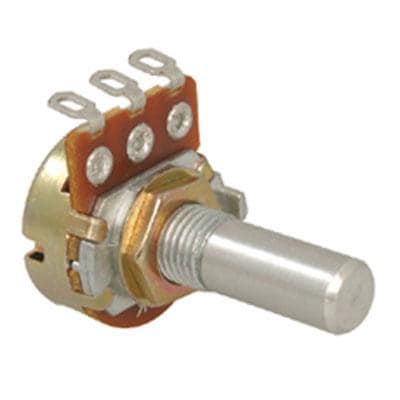

Alpha (Taiwan) RV16AF-10-20R1-B1M-LA Rotary Linear 1MEG Solder Lugs
Manufacturer: Alpha (Taiwan) Model: RV16AF-10-20R1-B1M-LA - Contact
Life: 15000 Cycle
Taper: Linear
Tolerance: 20 %
Resistance: 1 MOhms
Shaft Type: Smooth
Switch Type: No Switch
Unit Weight: 8 g
Element Type: Metal
Power Rating: 125 mW (1/8 W)
Shaft Length: 20 mm
Mounting Style: Panel Mount
Shaft Diameter: 6.35 mm
Voltage Rating: 150 VAC
Number of Gangs: 1 Gang
Number of Turns: 1 Turn
Number of Detents: Without Detent
Termination Style: Solder Lug
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 10 C
