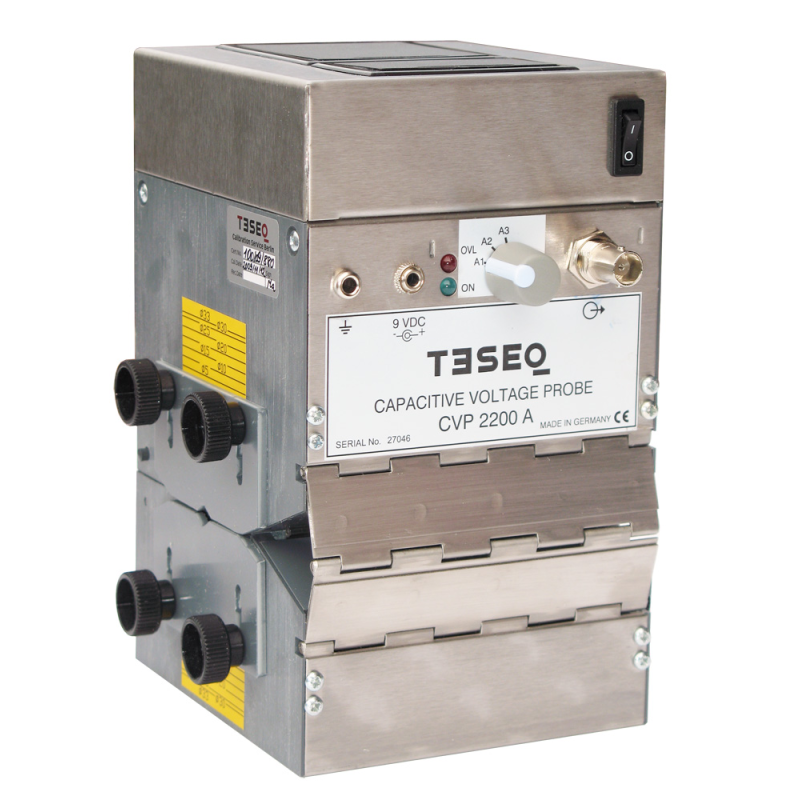

AMETEK CTS CVP 2200A Capacitive Voltage Probe (150 kHz ~ 30 MHz)

Frequency range: 150 kHz to 30 MHz

RF voltage range (in relation to a noise figure of the receiver F ≤ 10 dB)

Sinus voltage (Average, BIF = 9 kHz CISPR 16-1)

Upper limit (A1, 1 dB- compression): 150 dBµV

Lower limit (A3, f ≥ 1 MHz, noise error ≤ 1 dB): 26 dBµV

Pulse voltage (Quasi- peak)

Upper limit (A1, Puls frequency: 100 Hz): 74 dBµV

Overload indicator: for sinus- and pulse voltages

Correction factor k1 (Only valid for a cable diameter of 22 mm)

A3: 20 dB

A2: 30 dB

A1: 40 dB

Frequency response correction factor k1

A3: ±1.2 dB

A2: ±0.8 dB

A1: ±0.8 dB

Power supply

internal: 6 x 1.2 V, NiMH- Akku, e.g. 1700 mAh

external: 9 VDC, typ.: 180 mA

Battery life, typ.: 8 h

Cable diameter

max: 32 mm

min: 5 mm

Connectors

Output to the test receiver: BNC 50 Ω, female

Input power supply: jack bush, ∅ 3.5 mm

Size (L x H x D in mm): 145 x 190 x 140

Weight (without batteries): approx. 1.6 kg

Size of the suitcase (L x H x D in mm): 535 x 190 x 430

Weight of the suitcase, completed: approx. 7.5 kg

Datasheet
