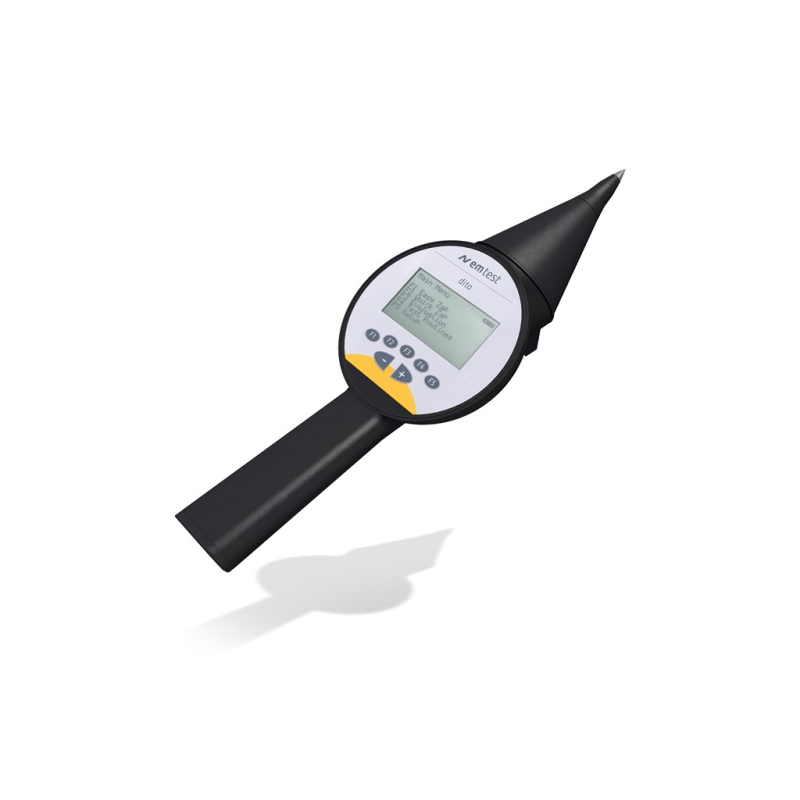

AMETEK CTS dito ESD Simulator (500 ... 10'000 V ± 5%; 500 ... 16'500 V ± 5%)

Discharge voltage

Contact discharge : 500 ... 10'000 V ± 5% (in 100 V steps)

Air discharge: 500 ... 16'500 V ± 5% (in 100 V steps)

Frequency / repetition:

0.5 ... 20 s (in 0.5 s steps)

1 ... 20 Hz (in 1 Hz steps), max 10Hz for CD

Polarity: positive / negative / alternating

Operation modes / trigger: single / continuous

Counter:

up: 1 ... 30'000

down: 0 ... 999'999

Accuracy charging voltage: < ± 5 % (at discharge tip)

Holding time: > 5 s (charging voltage max. - 5 %)

Auto shut off: After 10 minutes idle time

Discharge tips: exchangable , ball and point as per IEC 61000-4-2

Operation local control: 5 function keys, 2 cursor keys, 1 trigger

Operation remote control: software esd.control

Display: LCD graphic display

Power supply: LiFePO4 battery (1000mAh); > 70'000 discharges @ 16.5 kV

Weight: approx. 870 g (incl. battery)

Ambient conditions (operation): + 5 ... + 40 °C / 20 ... 80 % humidity (non condensing) / 860 ... 1060 mbar
