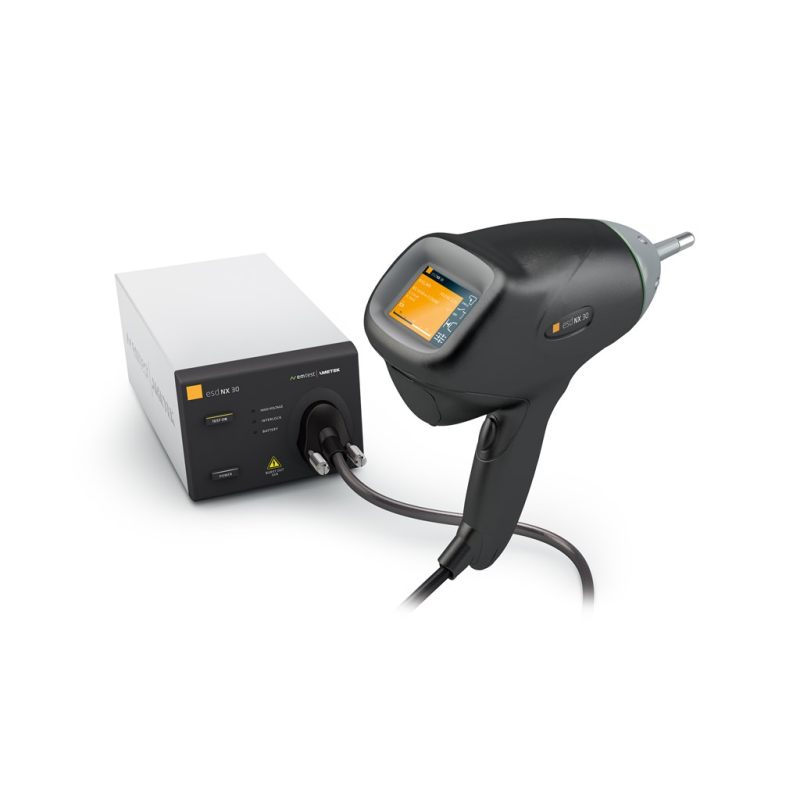

AMETEK CTS esd NX30.1 ESD Simulator (200 ... 30'000 V ± 5 %; 200 ... 30'000 V ± 5 %)

Air discharge voltage: 200 ... 30'000 V ± 5 %

Contact discharge voltage: 200 ... 30'000 V ± 5 %

Holding time: > 5 s (voltage drop max. -5%)

Frequency / repetition:

0.5, 1 ... 20 Hz in 1 Hz steps; 25 Hz (only air discharge)

Free / period: 0.04 ... 300 s in 0.01 s steps

Polarity: pos / neg / alternating

Operating modes: single / continuous

Counter: 0 ... 9'999

Threshold detection: No

Discharge tips: exchangable, ball and point according to ISO 10605

Display: Color touch screen

Power supply: Only power mains

Number of discharge with battery: n/a

Built-in bleed off: Yes, switchable

External bleed off option: No

Remote interface: No

Remote control software: No

Interlock: No

Remote Trigger: No

EUT Fail: No

Self calibration: Yes, but only after power up

R/C module detection: No

Storing user tests: No

Auto shut off: After 15 minutes idle time (no loss of test parameters)

Power mains (base station): Input: 100 ... 240 VAC, 1.4 A max., 50 ... 60 Hz; Output: 24 VDC, 2.71 A

Weight (base station): approx. 6.5 kg

Weight gun incl. discharge network: approx. 1'250 g

Dimension:

Base station: 170 x 360 x 140 mm

Discharge gun: 85 x 270 x 260 mm

Operating temperature: +5 ... + 40°C

Humidity: 20 ... 80 %, non condensing

Athmospheric pressure: 860 ... 1'060 mbar
