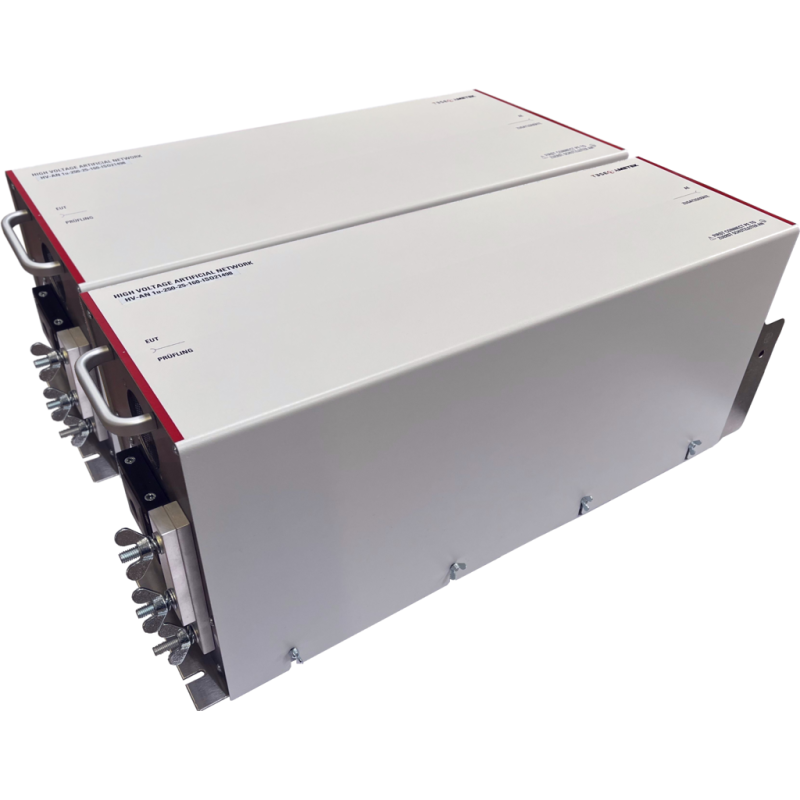

AMETEK CTS HV-AN 1u-R100-80/80 High Voltage Artificial Networks (80 A; 80 A; A)

Resistance: 100 mΩ

Maximum DC current: Continuous: 80 A; For 70 s: 80 A

Form Factor: A

Number of modules in set: 2

Max. voltage: 1000 VDC, 500 VACRMS

Isolation voltage: 1500 VDC (AE to GND)

Impedance and tolerance: according to ISO 21498-2

EUT/AE connector: inner thread with hex bolt (M12, key width 19 mm)

Measurement connector: 4mm safety lab connector (female), protected by fuse

Ground bar connector: bolt for screw nut M8

Temperature monitor: no

Dimensions per module(s): 670 x 200 x 266 mm

Weight module / set approx. 16 kg / 32 kg

Classification: Indoor use only

Operating temperature: 0 °C to +30 °C

Storage temperature: –10 °C to +60 °C

Relative humidity: up to 90 % r.h. non-condensing

Mains supply: by external power supply, 12 VDC / 1.4 A (included in set)
