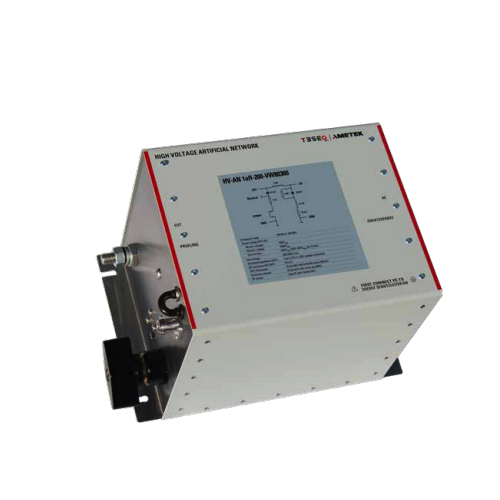

AMETEK CTS HV-AN 1uH-200-VW80300 High Voltage Artificial Network (500 VRMS; 1000 VRMS; 1 µH; 200 ARMS)

Frequency range: 100 kHz to 100 MHz

Power ratings (EUT/AE)

AC max. voltage: 500 VRMS

DC max. voltage: 1000 VRMS

Current max.: 200 ARMS (CW), 300 ARMS (for 15 min)

Test voltage: 1500 VDC 2 sec.

Simulated impedance (EUT):

1 µH || 47.6 Ω ± 20% (jumper connected)

1 µH || 50 Ω ± 20% (jumper removed)

DC resistance (AE/EUT): 0.6 mΩ

EUT/AE sockets: 12 mm bolt with butterfly screw (M12x1)

Connector chassis: 12 mm bolt with screw nut (M12)

Size (L X W x D): 365 mm x 203 mm x 203 mm

Weight: approx. 5.4 kg

Classification: Indoor use only

Operating temperature: 0 °C to +30 °C

Storage temperature: -10 °C to +60 °C

Relative humidity: up to 90 % (no moisture condensation)

Datasheet
