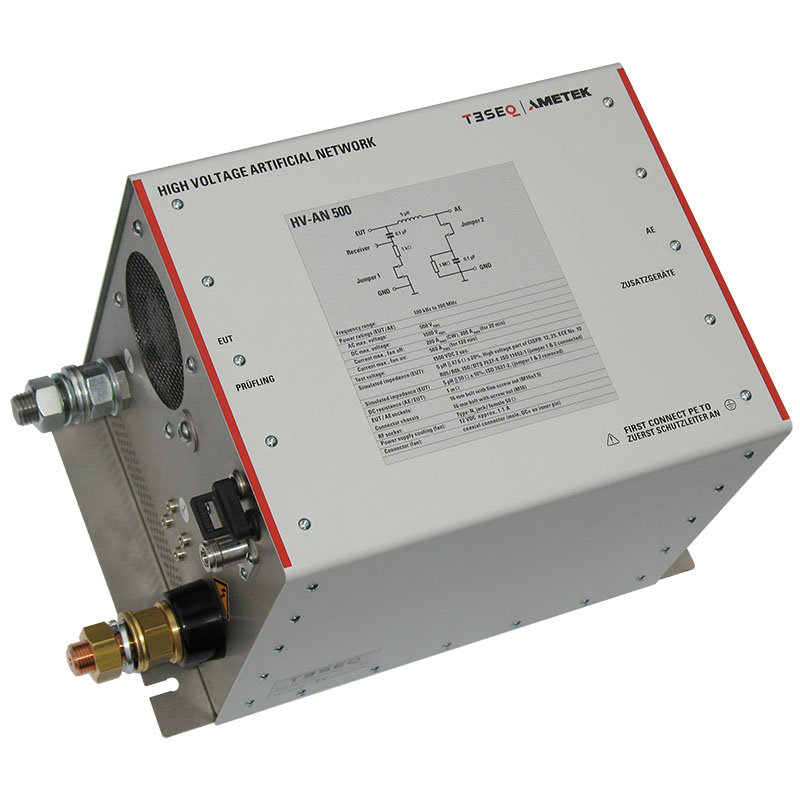

AMETEK CTS HV-AN 500 High Voltage Artificial Network (500 VRMS; 1000 V; 5 µH; 500 ARMS)

Frequency range: 100 kHz to 100 MHz

Power ratings (EUT/AE)

AC max. voltage: 500 VRMS

DC max. voltage: 1000 V

Current max.:

Passive, cooling (Fan) off: 200 ARMS (CW), 300 ARMS (for 20 min)

Active, cooling (Fan) on: 500 ARMS (CW) (for 2 hours)

Test voltage: 1500 VDC 2 sec.

Simulated impedance (EUT):

5 µH || 47.6 Ω ± 20%, High voltage part of CISPR 12, 25, ECE No. 10 R05/R06, ISO/DTS 7637-4, ISO 11452-1 (jumper 1 & 2 connected)

5 µH || 50 Ω ± 10%, ISO 7637-2 (jumper 1 & 2 removed)

5 µH || 47.6 Ω ± 20%, Low voltage part of CISPR 25, ECE No. 10 R06, ISO 11452-1 (jumper 1 connected, jumper 2 removed, HV-AN 500-option-1µF connected on AE port)

DC resistance (AE/EUT): 1 mΩ

EUT/AE sockets: 16 mm bolt with fine screw nut (M16x1.5)

Connector chassis: 16 mm bolt with screw nut (M16)

RF socket: Type-N, jack/ female 50 Ω

Connector for cooling: coaxial connector (male, DC+ on inner pin)

Requirements for cooling: 12 V DC, approx. 1.1 A

Power supply for cooling: 12 V DC/ 2.5 A, length 1.8 m, coaxial connector (female) 5.5 x 2.5 mm

Size (L X W x D): 365 mm x 203 mm x 203 mm

Weight: approx. 8.5 kg

Classification: Indoor use only

Operating temperature: 0 °C to +30 °C

Storage temperature: -10 °C to +60 °C

Relative humidity: up to 90 % (no moisture condensation)
