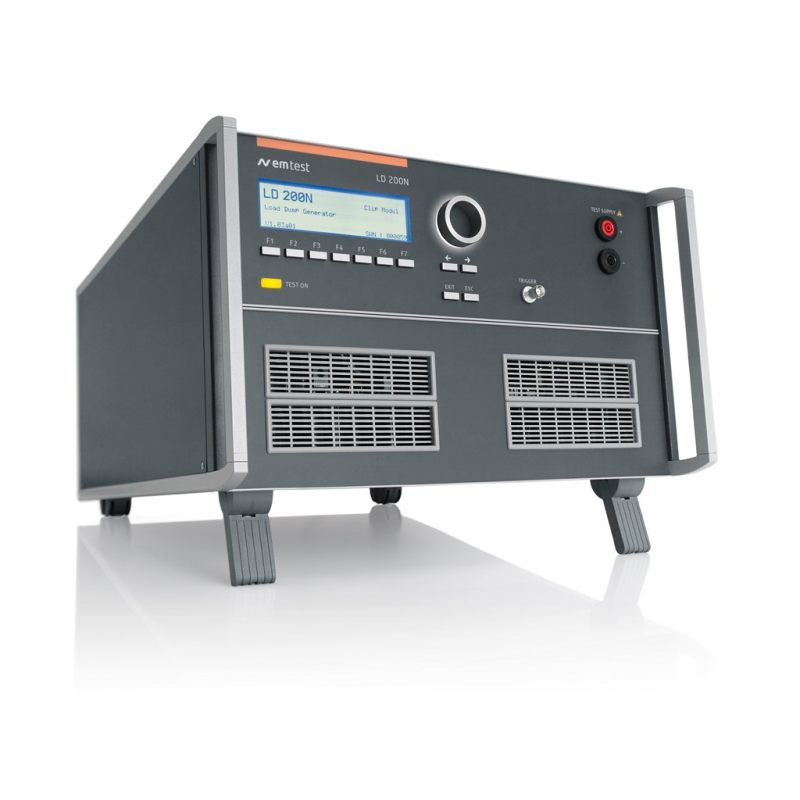

AMETEK CTS LD 200N Load Dump Generator (80 VDC; 30 A)

DUT supply voltage: + 80 VDC

DUT supply current: 30 A

Inrush current: No

DC battery switch built-in: No. Only when using a UCS 200Nx

Over current protection: No. Only when using a UCS 200Nx

Inputs: +/- Test supply IN

Outputs: +/- Test supply OUT; +/- Pulse OUT

Remote interface: GPIB / USB

Other interfaces: D-sub connector, to UCS 200Nx series

Triggers 1 x Trigger IN / 1 x Trigger OUT

External impedance Ri: Yes, 10 Ω min. setting at the generator + external impedance value

Safety: Safety circuit, Warning lamp

Dimensions: 19" / 6 HU (500 x 450 x 287 mm)

Weight: 30 kg

Power mains supply: 115 / 230 VAC +10/-15% ; 50 - 60 Hz

Fusage: 2 x 2 AT (230 VAC) / 2 x 4 AT (115 VAC)

Temperature: 10 ... 35 °C

Humidity: 30 ... 75 %, non condensing

Athmospheric pressure: 860 ... 1060 mbar

Amplitude: 20 ... 200 V +/- 10 %

Rise time: 5 ... 10 ms

Pulse width: 40 ... 400 ms +/- 20%

Internal resistor Ri: 0.5 ... 38 Ω, step size 0.1 Ω

Clipping voltage range: 15 ... 99.5 V (referred to 0V line)

Pulse repetition time: 15 ... 999 s

FreeStyle

Pulse rise time: 1 ... 10'000 µs

Pulse width: 10 ... 1200 ms +/- 20%

Pulse repetition time: 30 ... 999 s
