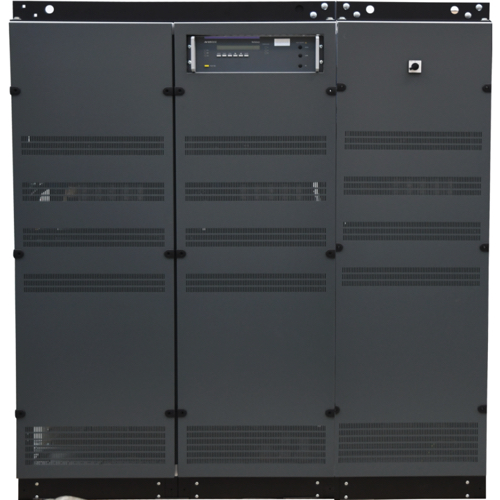

AMETEK CTS PowerWave 250-DC-480 DC Power Source (250 kW; 1500 VDC / 1000 A)

Output DC:

250 kW

High Range: 150 - 1500 V, max. 333 A

Low Range: 50 - 500 V, max. 1000 A

see power diagram for details

Number of Lines: 3

Bandwidth: 600 Hz

Frequency range: DC - 1200 Hz

Voltage Accuracy: DC: ±0.2% of set value ± 0.15% of full scale; AC: add ±0.1% of set frequency / 1000

Slew Rate max.: 650 V/ms

Isolation Voltage: L-PE and N-PE: 1000 VAC / 1500 VDC

Display and Controls: 2-line LCD, 40 characters

Waveform Generator: Integrated waveform generator (segment & point)

Operating Modes: Constant Voltage, Constant Current, Constant Resistance, Constant Power

Programmable resistance: 0 - 1000 mΩ, 1mΩ steps

Current Limiter: separate source and sink limiters, PEAK, continuous or stop

Safety: emergency stop, interlock, external relay control

Protection: overvoltage, overcurrent, overtemperature, input voltage

Output Connectors: copper bars

Supply Voltage: 3 x 480 V, +/- 10%, no neutral, 50/60 Hz

Supply Current: 396 A / line

Supply Connector: Screw connector, M12

Dimensions: 1787 x 1882 x 990 mm / 70 x 74 x 39 in

Net Weight: approx. 2500 kg / 5512 lb

Operating Environment: 5°C - 35°C, 10% - 90% non-condensing, 86 kPa (860 mbar) to 106 kPa (1 060 mbar)

Datasheet
