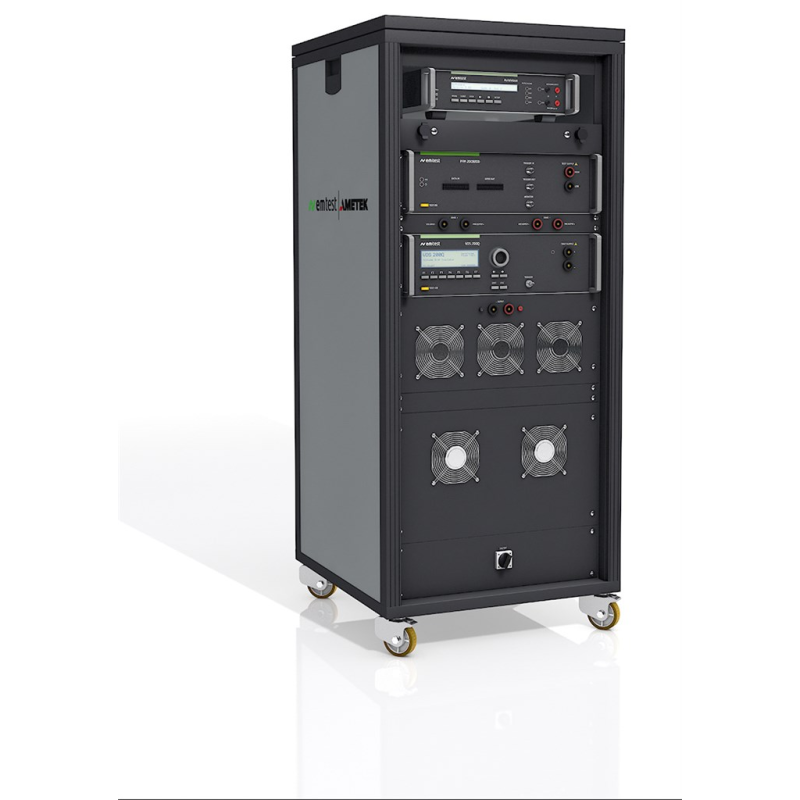

AMETEK CTS VDS 200Q100.2 4-Quadrant Amplifier (-20 ... +80 Vpk, 0 ... 100 A, 250 kHz)

Output voltage (cont.): -20 ... +80 VDC

Output current (cont.): 0 ... 100 A

Inrush current: max. 300 A for 200 ms

Bandwith (-3dB): DC ... 150 kHz, full signal / 150 ... 250kHz (40 Vpp max.)

Slew rate typical: < 10us (STD mode) / < 3us (HF mode)

Source impedance: < 10 mΩ

Programmable source impedance *: 10 ... 200 mΩ, in 10 mΩ steps

Compensation Modes: CAP: DC ... 3kHz / STD: DC ... 40 kHz / HF: DC ... 150 kHz

Recovery time :90 % of max. excursion within 25 µs

Sense Lines: Yes, voltage drop compensation in cabling, max 8 VDC (AC up to to approx. 8 kHz)

Ripple voltage (noise): < 10 mVpp up to min. 400 Hz

Safety: Circuit breaker

Current limiter: 3x I coninuous / 3x I set / Peak off

DC Voltage limiter: Yes

Overvoltage Output protection circuit:

Yes, power mains input monitoring.

DUT output safe disconnection, accidentaly switching on prevented.

Interface (remote): 1x IEEE, 1 x USB, (ethernet pass-through AutoWave)

Interfaces: 1x trigger IN / 1x trigger OUT / 1 x ± 10 analoge input

Cooling: Temperature- controlled air cooling

Power Mains: 200 / 400 VAC ± 10 % / 200 VAC : 3 x L + PE / 400 VAC: 3 x L + N + PE

Power Mains (Input current per phase)

208 V: min. 40 A

400 V: min. 25 A

Power mains frequency: 50 ... 60 Hz

Housing: 19" / 38 HU rack

Dimension: 1940 x 550 x 800 mm

Weight: 450 kg

Operating temperature: 10 ... 40 °C

Humidity: 10 ... 90%, non-condensing

Pressure: 860 mbar ... 1060 mbar

* for DC up to 400 Hz
