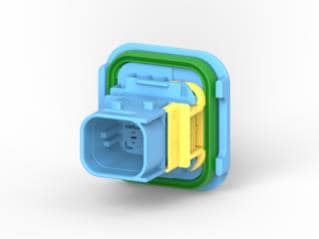

AMP Connectors - TE Connectivity 4-1703820-1 Housings 6POS, TAB 1.6X0.6, TAB HSG, ASSY
Manufacturer: AMP Connectors - TE Connectivity Model: 4-1703820-1 - Contact
Color: Blue
Pitch: 4 mm (0.157 in)
Width: 39.8 mm
Gender: Pin (Male)
Height: 47.05 mm
Length: 37.5 mm
Application: Wire to Wire
Row Spacing: 6 mm
Number of Rows: 2 Row
Voltage Rating: 42 VDC
Housing Material: Polybutylene Terephthalate (PBT)
Locking Mechanism: On the terminal
Ingress Protection: IP67
Flammability Rating: UL 94 V-0
Number of Positions: 6 Position
Maximum Operating Temperature: + 140 C
Minimum Operating Temperature: - 40 C
