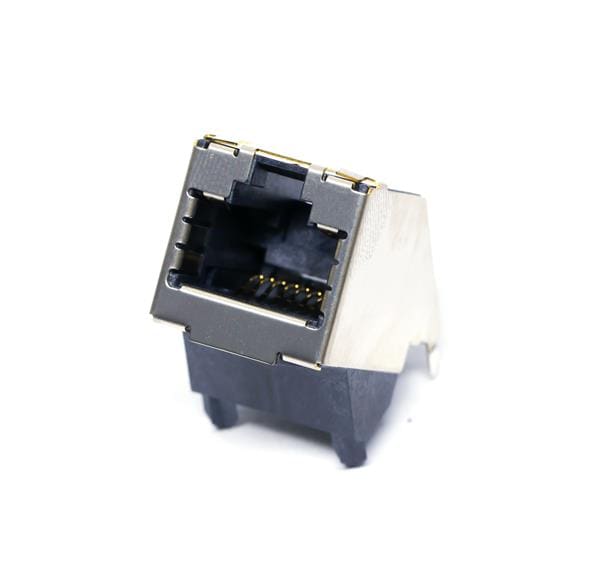

AMP Connectors - TE Connectivity 2170668-1 Modular 1x1 8P Angle Entry Jack T/H Shld RJ45
Manufacturer: AMP Connectors - TE Connectivity Model: 2170668-1 - Contact
Color: Black
Gender: Jack (Female)
Shielding: Shielded
USOC Codes: RJ45
Application: 1G/10G Base-T
Unit Weight: 22.239 g
Configuration: 1x1
Tab Direction: Tab Up
Current Rating: 1.5 A
Mounting Angle: 45 Deg Angle
Mounting Style: Through Hole
Number of Rows: 1 Row
Contact Plating: Gold
Number of Ports: 1 Port
Contact Material: Phosphor Bronze
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
Performance Category: Cat 6
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Number of Positions / Contacts per Port: 8P8C
