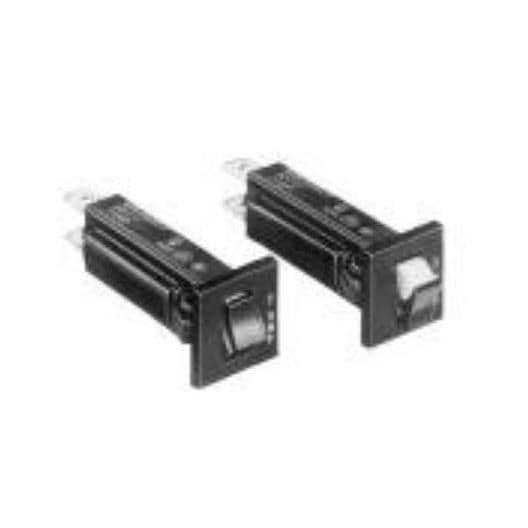

AMP Connectors - TE Connectivity W28-XQ1B-8 Thermal CIRCUIT BREAKER THERMAL
Manufacturer: AMP Connectors - TE Connectivity Model: W28-XQ1B-8 - Contact
Width: 19.31 mm
Height: 19.31 mm
Length: 38.99 mm
Compliance: UL
Illuminated: Non-Illuminated
Unit Weight: 9 g
REACH - SVHC: Details
Actuator Type: Reset Button
Current Rating: 8 A
Mounting Style: Snap-In
Voltage Rating: 32 V
Number of Poles: 1 Pole
Termination Style: Quick Connect
Voltage Rating AC: 250 VAC
Voltage Rating DC: 32 VDC
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: - 20 C
