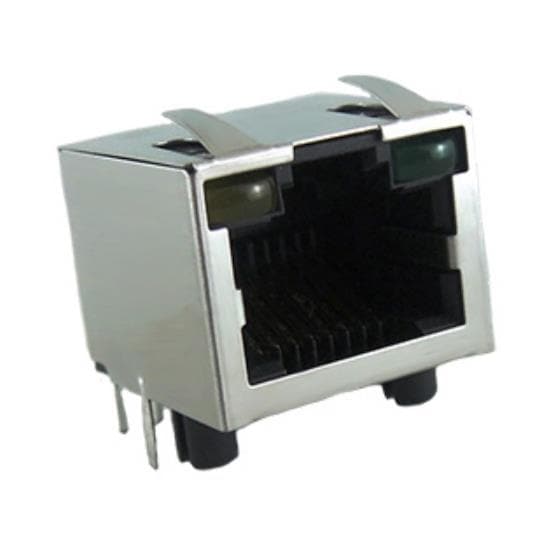

Amphenol Commercial Products RJHSE548BH1 Modular 8P8C RA Shield With LED 3.99mm Tail Lgth
Manufacturer: Amphenol Commercial Products Model: RJHSE548BH1 - Contact
Color: Black
Pitch: 1.27 mm
Gender: Jack (Female)
Shielding: Shielded
USOC Codes: RJ45
Application: Networking, Server, Telecom
Configuration: 1x1
Mating Cycles: 750 Cycles
Current Rating: 1.5 A
Mounting Angle: Right Angle
Mounting Style: PCB Mount
Voltage Rating: 125 VAC
Contact Plating: Gold
LED L / R Color: Red, Green / Red, Green
Number of Ports: 1 Port
Contact Material: Phosphor Bronze
Termination Style: Solder
Mounting Direction: Right Angle
Number of Contacts: 8 Contact
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
Insulation Resistance: 500 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Number of Positions / Contacts per Port: 8P8C
