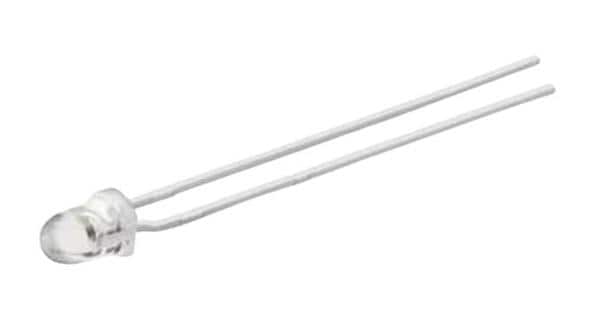

ams OSRAM SFH 309-4/5 Silicon NPN Phototransistor PHOTOTRANSISTOR
Manufacturer: ams OSRAM Model: SFH 309-4/5 - Contact
Width: 4 mm
Height: 5.2 mm
Length: 4 mm
Fall Time: 8 us
Rise Time: 8 us
Wavelength: 860 nm
Unit Weight: 200 mg
Dark Current: 15 mA
Light Current: 3.2 mA
Qualification: AEC-Q100
Mounting Style: Through Hole
Peak Wavelength: 860 nm
Lens Color/Style: Clear
Pd - Power Dissipation: 165 mW
Half Intensity Angle Degrees: 12 deg
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
Maximum On-State Collector Current: 15 mA
Collector- Emitter Voltage VCEO Max: 35 V
Collector-Emitter Breakdown Voltage: 35 V
Collector-Emitter Saturation Voltage: 200 mV
