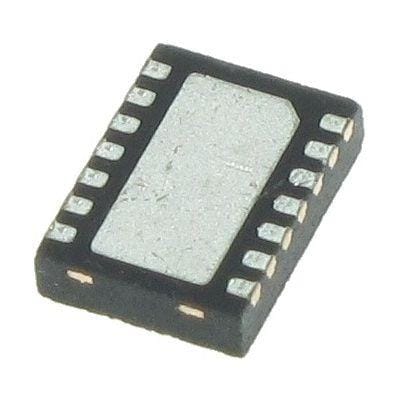

Analog Devices LT1997HDF-3#TRPBF Operational Amplifiers Prec, Wide V Rng Gain Sel Amp

Shutdown: Shutdown

Gain Error: 0.002 %

Output Type: Rail-to-Rail

3 dB Bandwidth: 1100 kHz

Amplifier Type: Selectable Gain

Mounting Style: SMD/SMT

SR - Slew Rate: 750 mV/us

Number of Channels: 1 Channel

Supply Voltage - Max: 50 V

Supply Voltage - Min: 3.3 V

Ib - Input Bias Current: 15 nA

Maximum Input Resistance: 45 kOhms

Operating Supply Current: 350 uA

Vcm - Common Mode Voltage: 160 V

Ios - Input Offset Current: 10 nA

Output Current per Channel: 30 mA

Vos - Input Offset Voltage: 20 uV

GBP - Gain Bandwidth Product: 1.1 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 50 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 91 dB

PSRR - Power Supply Rejection Ratio: 124 dB
