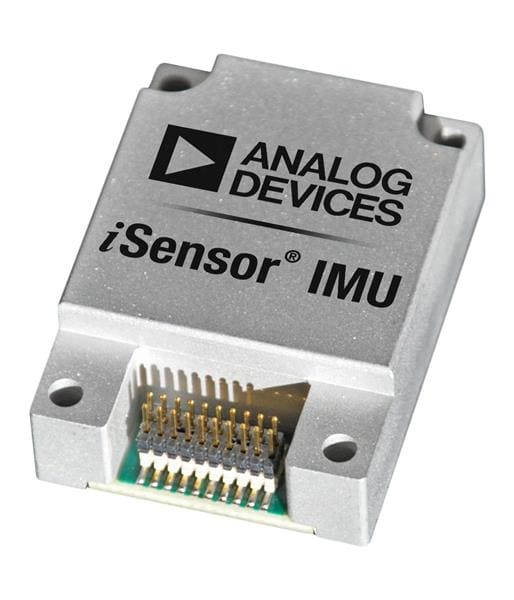

Analog Devices ADIS16445BMLZ IMUs - Inertial Measurement Units Compact Precision 6 Deg of Freedom IMU
Manufacturer: Analog Devices Model: ADIS16445BMLZ - Contact
Range: +/- 250 deg/s
Width: 24.1 mm
Height: 10.8 mm
Length: 37.7 mm
Bandwidth: 330 Hz
Resolution: 16 bit
Output Type: Digital
Sensitivity: 0.01 deg/s/LSB
Sensor Type: 6-axis
Unit Weight: 25 g
Acceleration: 2000 g
Sensing Axis: X, Y, Z
Interface Type: SPI
Supply Voltage - Max: 3.45 V
Supply Voltage - Min: 3.15 V
Operating Supply Current: 74 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
