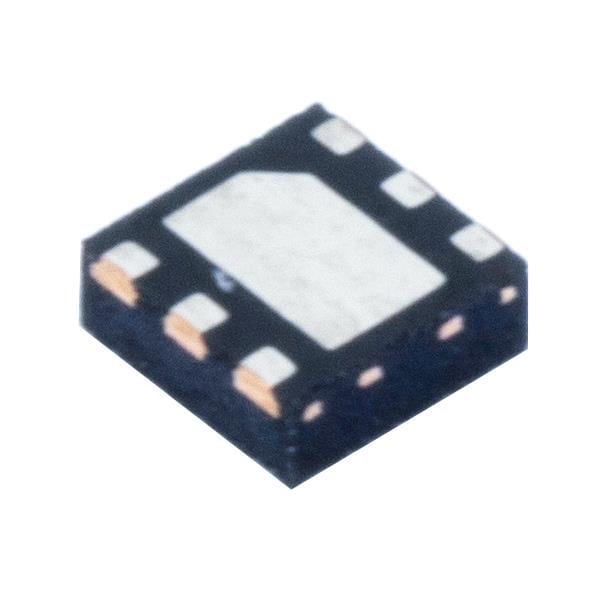

Analog Devices ADP122ACPZ-3.3-R7 Linear Voltage Regulators 300mA LDO 3.3Vout
Manufacturer: Analog Devices Model: ADP122ACPZ-3.3-R7 - Contact
Width: 2 mm
Height: 0.55 mm
Length: 2 mm
Polarity: Positive
Output Type: Fixed
Unit Weight: 14.600 mg
Mounting Style: SMD/SMT
Output Current: 300 mA
Output Voltage: 3.3 V
Line Regulation: 0.05 %/V
Load Regulation: 0.0005 %/mA
Number of Outputs: 1 Output
Quiescent Current: 45 uA
Input Voltage - Max: 5.5 V
Input Voltage - Min: 2.3 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
PSRR / Ripple Rejection - Typ: 60 dB
