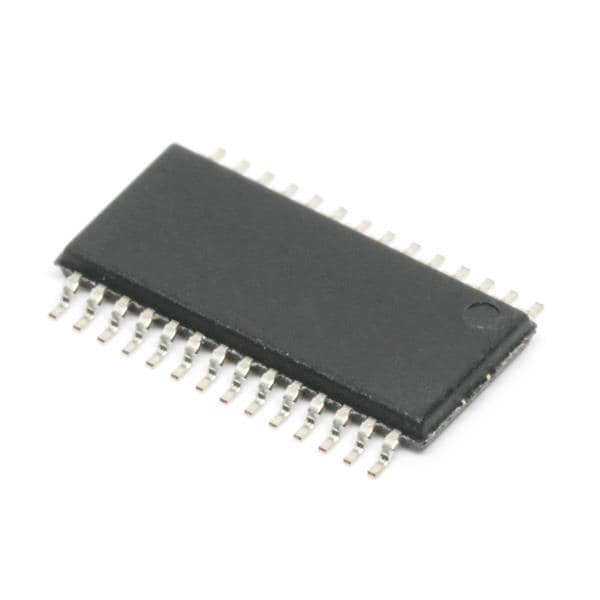

Analog Devices ADUC814ARUZ MCUs 12 BIT ADC WITH EMBEDDED 8-BIT MICRO I.C

Core: 8052

Width: 4.4 mm

Height: 1.05 mm

Length: 9.7 mm

Unit Weight: 403 mg

Data RAM Size: 256 B

Data RAM Type: RAM

Data ROM Size: 640 B

Data ROM Type: EEPROM

ADC Resolution: 12 bit

DAC Resolution: 12 bit

Data Bus Width: 8 bit

Interface Type: I2C/SPI/UART

Mounting Style: SMD/SMT

Number of I/Os: 17 I/O

Development Kit: EVAL-ADUC814QSZ

Watchdog Timers: Watchdog Timer

Processor Series: ADUC814

Program Memory Size: 8 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.3 V, 5.5 V

Supply Voltage - Min: 2.7 V, 4.5 V

Analog Supply Voltage: 3 V, 5 V

Number of ADC Channels: 6 Channel

Maximum Clock Frequency: 16.78 MHz

Number of Timers/Counters: 3 Timer

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
