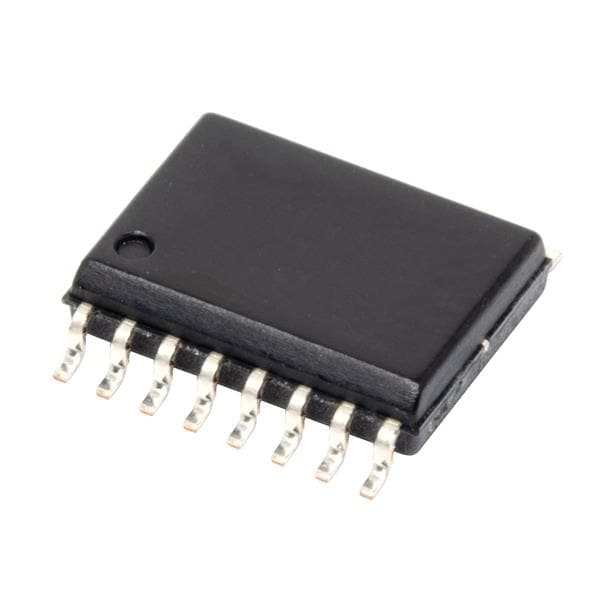

Analog Devices ADUM4190SRIZ-RL Linear 5kV High Stability Isolated Error Amp
Manufacturer: Analog Devices Model: ADUM4190SRIZ-RL - Contact
Gain V/V: 1 V/V, 2.6 V/V
Unit Weight: 666 mg
3 dB Bandwidth: 200 kHz
Amplifier Type: Isolation
Isolation Type: Galvanic
Mounting Style: SMD/SMT
Isolation Voltage: 5 kVrms
Moisture Sensitive: Yes
Number of Channels: 1 Channel
Supply Voltage - Max: 20 V
Supply Voltage - Min: 3 V
Operating Supply Current: 1.4 mA, 2.9 mA
Operating Supply Voltage: 3 V to 20 V
Input Voltage Range - Max: 1.5 V
GBP - Gain Bandwidth Product: 10 MHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
CMRR - Common Mode Rejection Ratio: 72 dB
