Technology: Si
IF Frequency: DC to 18 GHz
LO Frequency: 22 GHz to 38 GHz
RF Frequency: 22 GHz to 38 GHz

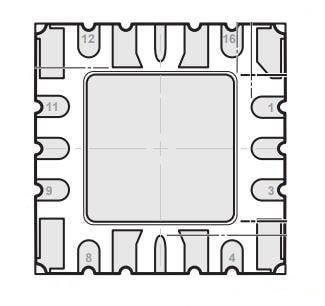

Mounting Style: SMD/SMT
NF - Noise Figure: 10.5 dB, 11.5 dB
Moisture Sensitive: Yes
Conversion Loss - Max: 15 dB
P1dB - Compression Point: 9 dBm, 11.5 dBm
OIP3 - Third Order Intercept: 20 dBm, 19.5 dBm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
