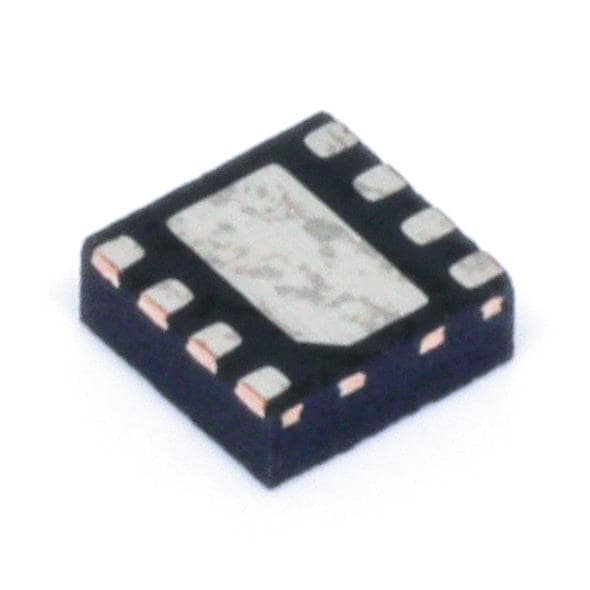

Analog Devices LT1965IDD-2.5#TRPBF Low Dropout Linear Regulator 1.1A, L N, L Drop Lin Reg
Manufacturer: Analog Devices Model: LT1965IDD-2.5#TRPBF - Contact
Output Type: Fixed
Mounting Style: SMD/SMT
Output Current: 1.1 A
Output Voltage: 2.5 V
Dropout Voltage: 310 mV
Line Regulation: 4.5 mV
Load Regulation: 8.75 mV
Number of Outputs: 1 Output
Quiescent Current: 500 uA
Input Voltage - Max: 20 V
Input Voltage - Min: 1.8 V
Output Voltage Range: 1.2 V to 19.5 V
Dropout Voltage - Max: 360 mV
Operating Supply Current: 500 uA
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
PSRR / Ripple Rejection - Typ: 75 dB
