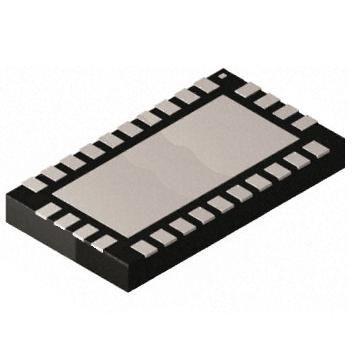

Analog Devices MAX2771ETI+T GNSS Receiver Next-generation Global Navigation Satellite System (GNSS) receiver
Manufacturer: Analog Devices Model: MAX2771ETI+T - Contact
Gain: 18 dB
Bandwidth: 2.5 MHz, 4.2 MHz, 8.7 MHz, 16.4 MHz, 23.4 MHz, 36 MHz
Dimensions: 5 mm x 5 mm
Technology: SiGe
Unit Weight: 1.350 g
Mounting Style: SMD/SMT
NF - Noise Figure: 10.3 dB
Operating Frequency: 1.2276 GHz, 1.57542 GHz
Supply Voltage - Max: 3.3 V
Supply Voltage - Min: 2.7 V
Operating Supply Current: 27 mA
Operating Supply Voltage: 2.7 V to 3.3 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
