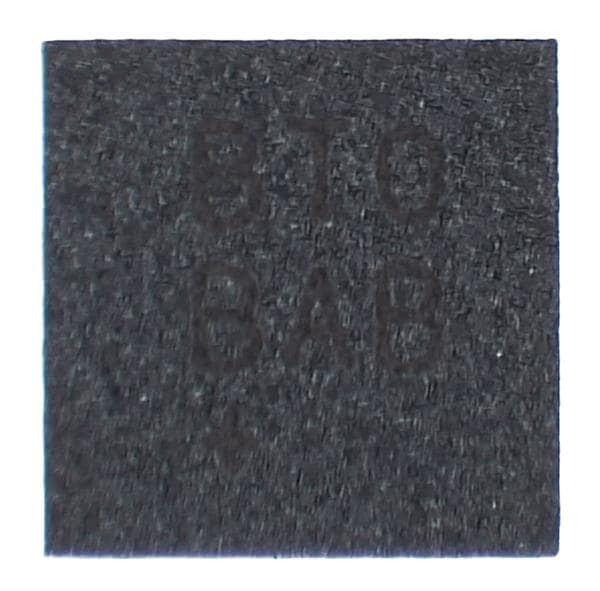

Analog Devices MAX38912ATA+T Linear 11 VRMS Low-Noise, 500mA LDO Linear Regulators with Low-Power Mode

Polarity: Positive

Output Type: Adjustable

Mounting Style: SMD/SMT

Output Current: 500 mA

Output Voltage: 800 mV to 5 V

Dropout Voltage: 100 mV

Line Regulation: 0.068 %/V

Load Regulation: 0.078 %

Number of Outputs: 1 Output

Quiescent Current: 332 uA

Input Voltage - Max: 5.5 V

Input Voltage - Min: 1.7 V

Output Voltage Range: 800 mV to 5 V

Dropout Voltage - Max: 300 mV

Pd - Power Dissipation: 937.9 mW

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 44 dB
