Measuring Range: 0-100%
Accuracy: +/-2% of Full Scale
Signal Output:
Linearity: +/-2% of Full Scale
Response T90: 9 sec
Temp Coefficient: compensated
Operating Temp: 0 to 45°C
Recommended Storage: 0 to 25°C
Temperature Coefficient: Compensated
Shelf Life: 6 months
Humidity Non-condensing: 0-99% RH
Expected Life: 60 months
Warranty: 12 months
Electrical Connector: 3.5 male mono jack

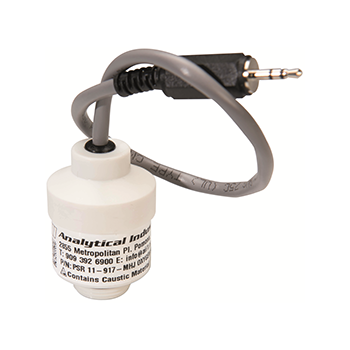

Target Gas: O2
Measuring Range: 0 - 100% O2
LDL | PPM sensors: N/A
Published Signal Output in air (1): 7 - 9.6 mV
Response Time T90%: 6 S
Accuracy Full Scale (2): 0.02
Drift % Signal Month (2): < 1%
Linearity (2): 0.01
Humidity Non-Condensing: 0-99% RH
Temperature Coefficient: Compensated
Operating Temperature: 0-45° C
Storage Temperature: 0-40° C
Operating Pressure: Consistent 5-30 PSIG
Flow Rate: .1-10 LPM
Expected Life (1): 60 Months
Storage / Shelf life (4): < 6 Months
Warranty (5): 12 Months
Connector Type: 2.5mm Male Phone Jack
Gas Connection: Flow diverter
Housing Material: ABS
FDA: Yes
CE: Yes
MDSAP ISO13485: 2016: Yes
ISO9001:2015: Yes
Sensor Technology: Echem
