Bearing design: Air, fine-pored carbon
Motor design: Electronically commutated (EC) permanent magnet synchronous motor
Displacement transducer: High-resolution optical encoder
Normal force measurement design: 360° capacitive sensor, non-contacting, fully integrated in bearing
Working modes: Configuration with 1 EC motor : CMT | Configuration with 2 EC motors: CMT, SMT, Counter-Movement1)
Min. torque (rotation): Configuration with 1 EC motor : 1 nNm | Configuration with 2 EC motors: 1 nNm
Min. torque (oscillation): Configuration with 1 EC motor : 0.2 nNm | Configuration with 2 EC motors: 0.2 nNm
Max. torque: Configuration with 1 EC motor: 230 mNm | Configuration with 2 EC motors: 230 mNm
Torque resolution: Configuration with 1 EC motor : 0.05 nNm | Configuration with 2 EC motors: 0.05 nNm
Angular deflection resolution: < 1 nrad
Min. angular velocity2): 0 rad/s
Max. angular velocity / max. speed: Configuration with 1 EC motor : 314 rad/s; 3,000 rpm | Configuration with 2 EC motors: 628 rad/s 6,000 rpm
Min. frequency3): 2 Hz x 10^-8 Hz
Max. frequency: 200 Hz
Normal force range: 0.001 N to 50 N
TruStrain: ✓
Ready for DMA in tension, bending, and compression: ✓
Ready for axial-torsional DMA 4): ✓
Active thermal management of motor: ✓
With exposed support plate 5): ✓
Dimensions (W x H x D): 300 mm x 775 mm x 584 mm
Electronic box: 333 mm x 231 mm x 576 mm
Weight:
Configuration with 1 EC motor: 52 kg; Electronic box: 16 kg
Configuration with 2 EC motors: 62 kg; Electronic box: 16 kg
1) US Pat. 8453496
2) In controlled shear stress (CSS) mode. In controlled shear rate (CSR) mode depending on measuring point duration and sampling rate.
3) Theoretical value (duration per cycle = 2 years).
4) US Pat. 9574983 and US Pat. 10908058.

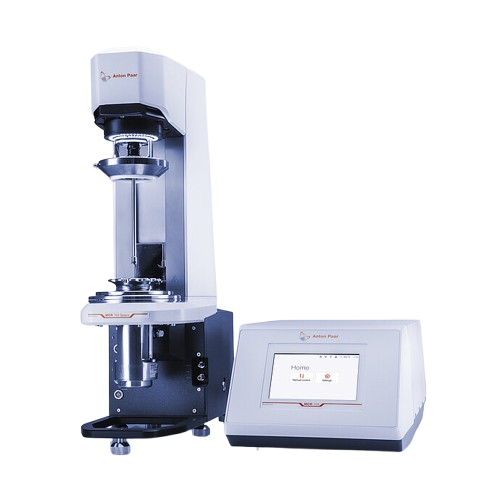

5) MCR 703 Space MultiDrive: Unique maximized workspace below the rheometer support plate and on both sides of the instrument
