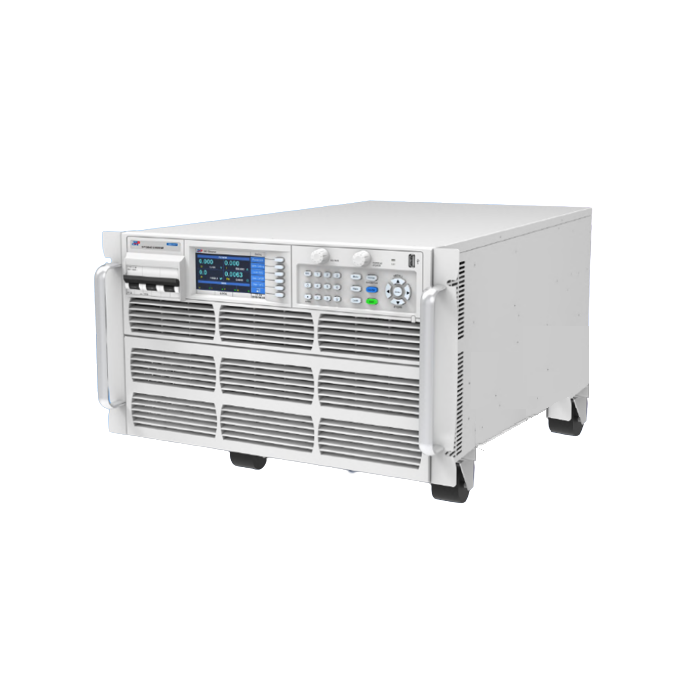

APM SP1500VDC24000W Wide-range High-power Programmable DC Power Supply (1500V, 42A, 24000W)
Manufacturer: APM Model: SP1500VDC24000W - Contact
Input Voltage: For different input voltage standard option must be specified at the time of order as they are installed at the factory prior to shipment
196~305VAC
340~480VAC
Output
Rated Voltage: 1500V
Rated Current: 42A
Rated Power: 24000W
Size: 6U / 423.0x265.0x745.0 mm & 75kg
Ripple
Voltage: <2500mVpp, <600mVrms
Current: <22mArms
Response
Voltage increase: <15ms (No Load) <80ms (Full Load)
Voltage Drop: <700ms (No Load) <20ms (Full Load)
Internal Resistance: 0~1071Ω
Catalogue / Datasheet
SP-3U/6U Series APM High Power DC Power Supply Front Panel Operation Instructions
SP-3U/6U Series APM High Power DC Power Supply Timer Func
SP-3U/6U Series DC Power Supply Counting function
SP-3U/6U Series DC Power Supply Test Mode
SP-3U/6U Series DC Power Supply Firmware upgrade operation
