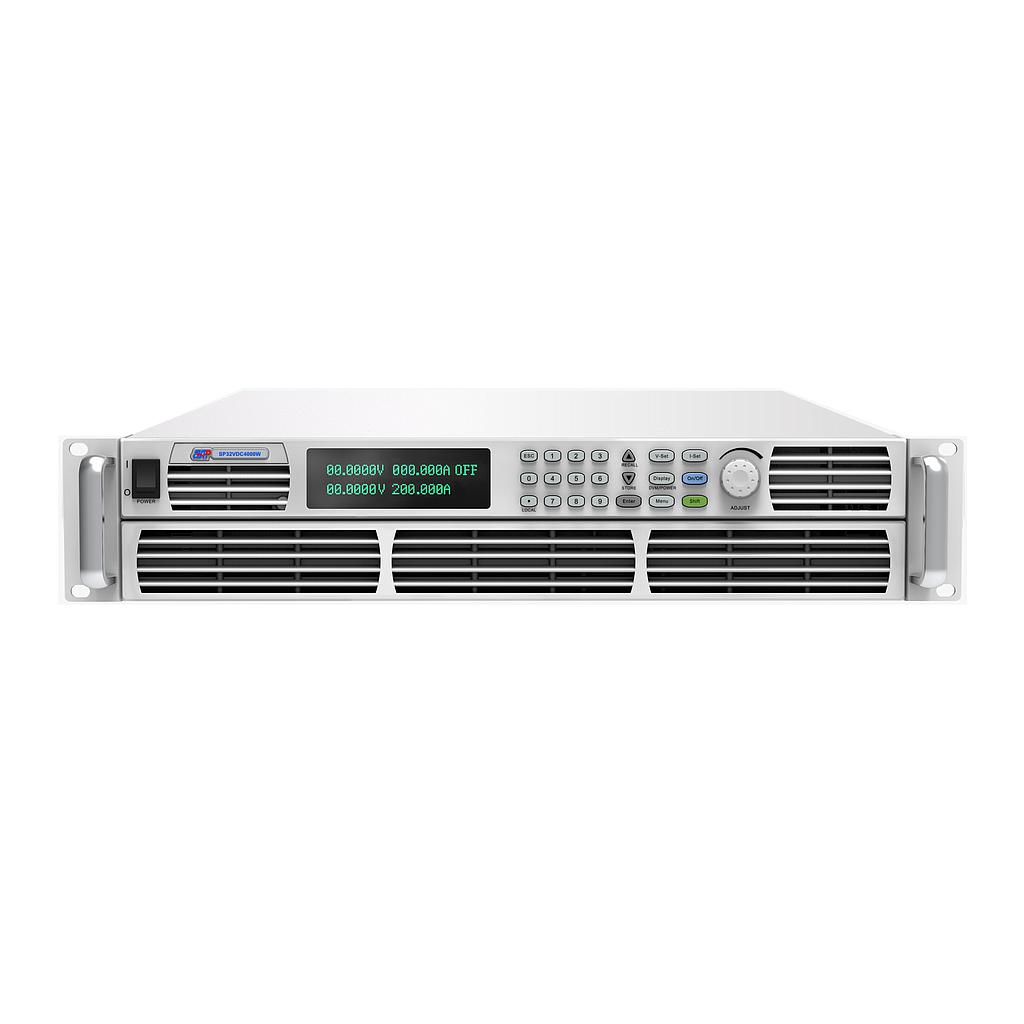

APM SPS150VDC1000W High Performance Programmable DC Power Supply (150V, 30A, 1000W)
Manufacturer: APM Model: SPS150VDC1000W - Contact
Input Voltage: 90~265VAC
Input Frequency: 47~63Hz
Power Factor: >0.98
Input Power: 1900VA(MAX)
Output
Rated Voltage: 150V
Rated Current: 30A
Rated Power: 1000W
Size: 2U
Ripple
Voltage: 80mVp-p/15mVrms
Current: 10mA (TYP Value)
Response
Voltage increase: ≤25ms (No load), ≤25ms (Full load)
Voltage Drop: ≤500ms(No load), ≤25ms (Full load)
Certificates: CE/RoHs
Details
Datasheet
SP-1U/2U Series DC Power Supply Short Mode Function
SP-1U/2U Series DC Power Supply Timer Output Function
SP-1U/2U series DC Power Supply Quick Recall function
SP-1U/2U series DC Power Supply Counting function
SP-1U/2U Series DC Power Supply LIST waveform edit function----Pulse waveform
SP-1U/2U Series DC Power Supply LIST waveform edit function----Slope rate waveform
